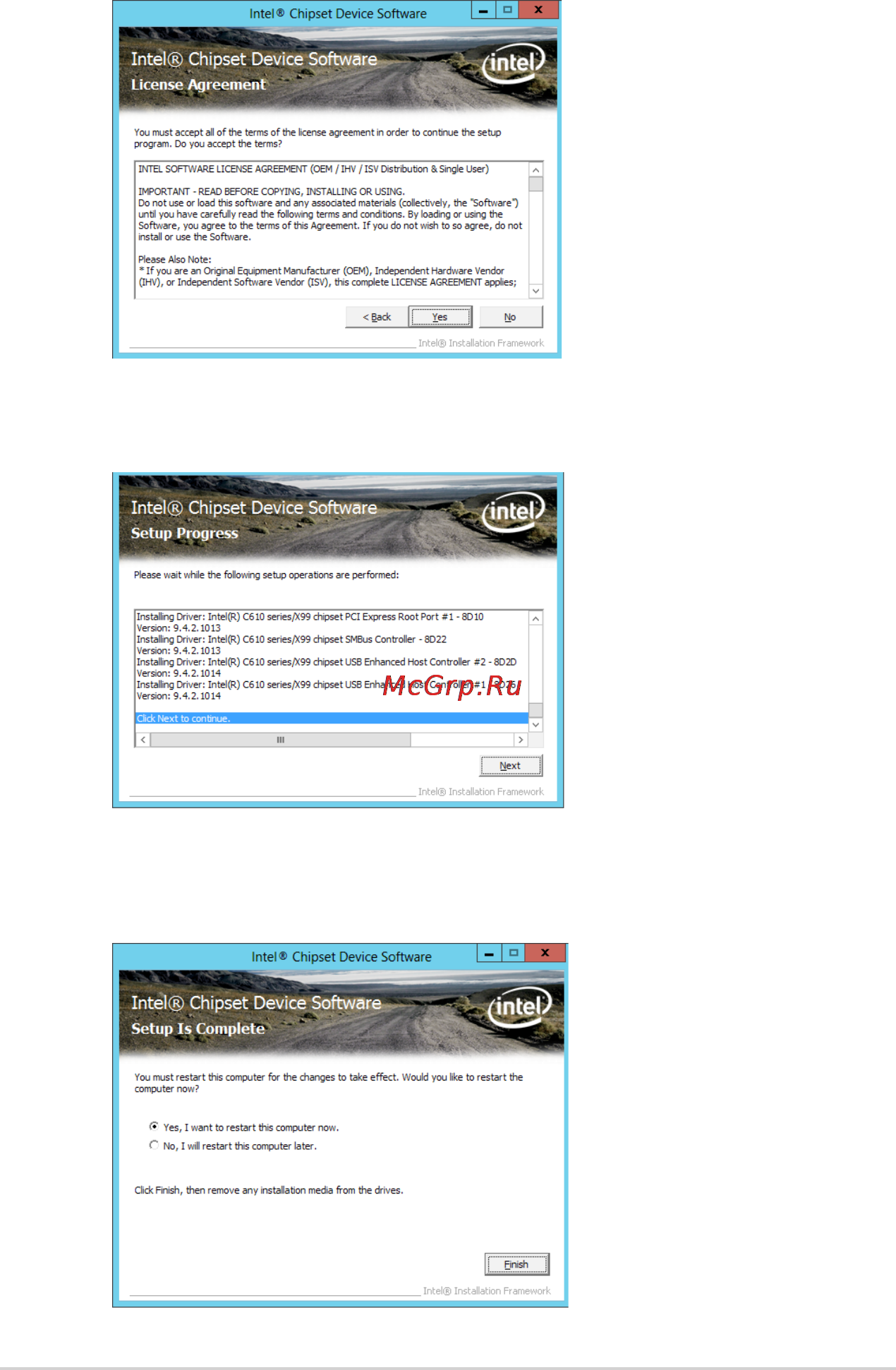

6-18 Chapter 6: Driver installation
5. Select Yes to accept the terms of the License Agreement and continue the process.
6. Read the Readme File Information and press Next to continue the installation.
7. Toggle Yes, I want to restart the computer npw and click Finish to complete the
setup process.
