4-21
Z10PA-D8 Series
4.4.10 Trusted Computing

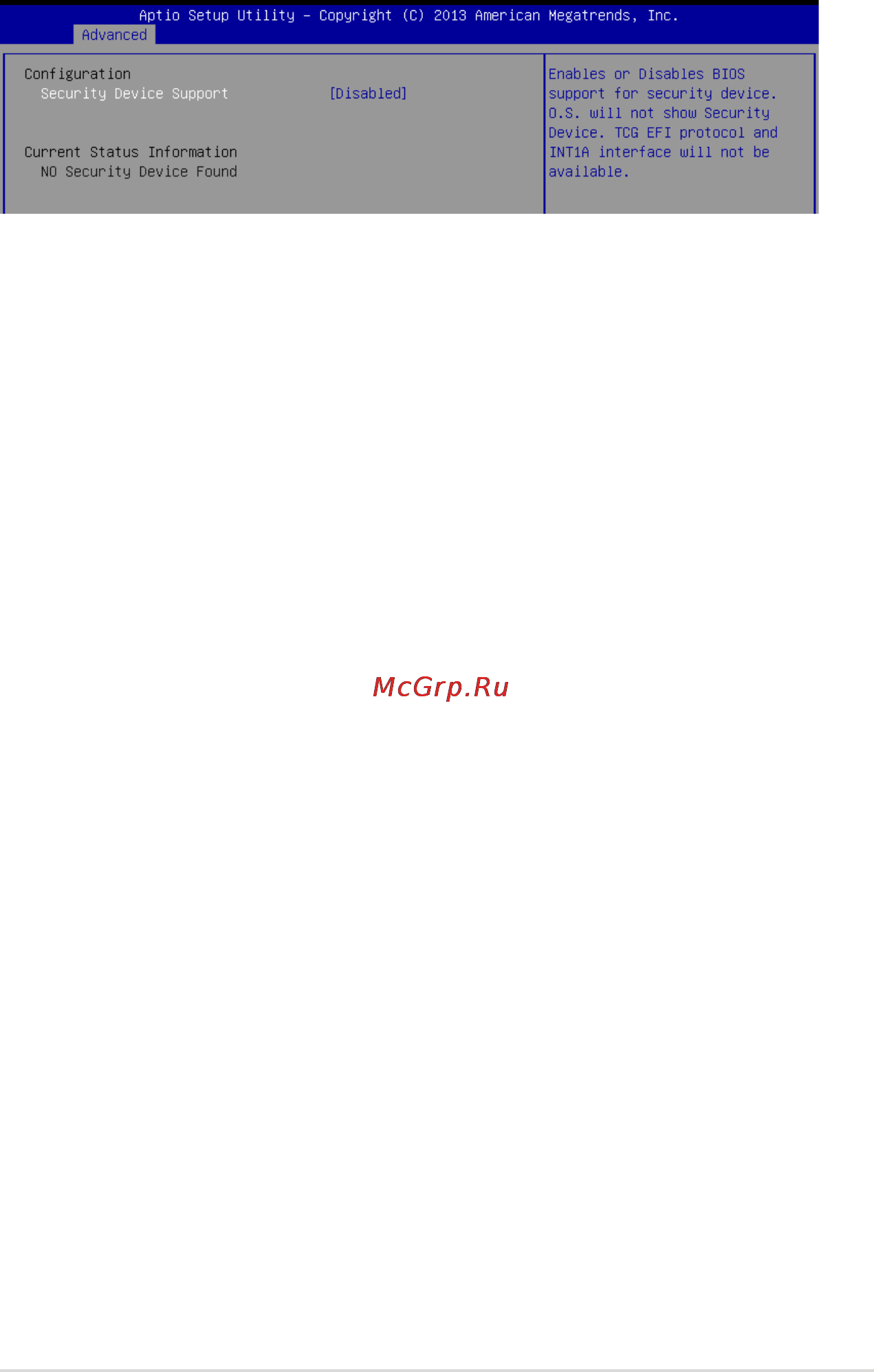

Configuration
Security Device Support [Disabled]
Allows you to enable or disable the BIOS support for security device.
Congurationoptions:[Disabled][Enabled]
