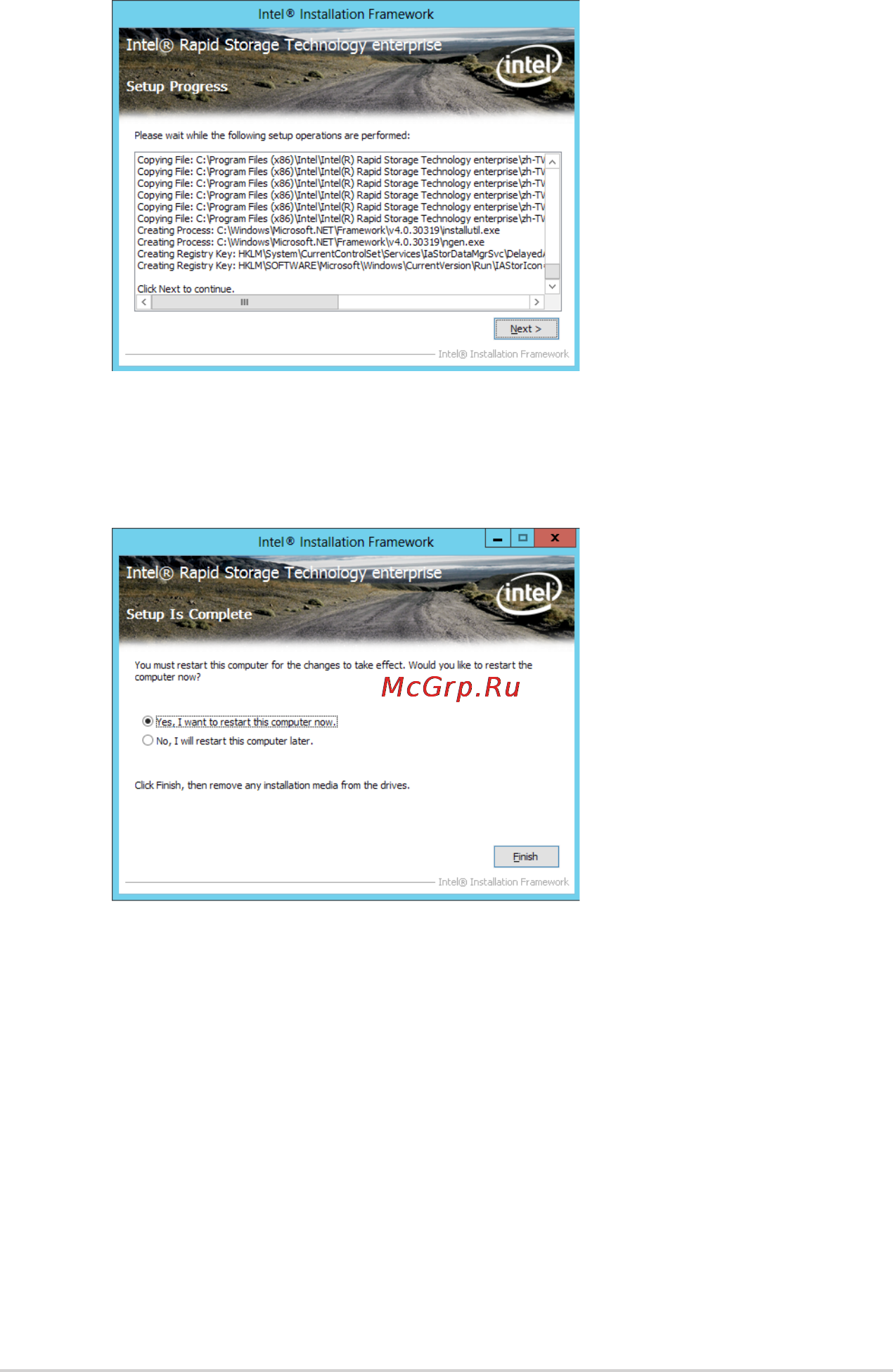

6-26 Chapter 6: Driver installation
9. Select
Yes, I want to restart my computer now
and click
Finish
to restart your
computer before using the program.
8. After completing the installation, click
Next
to complete the setup process.
