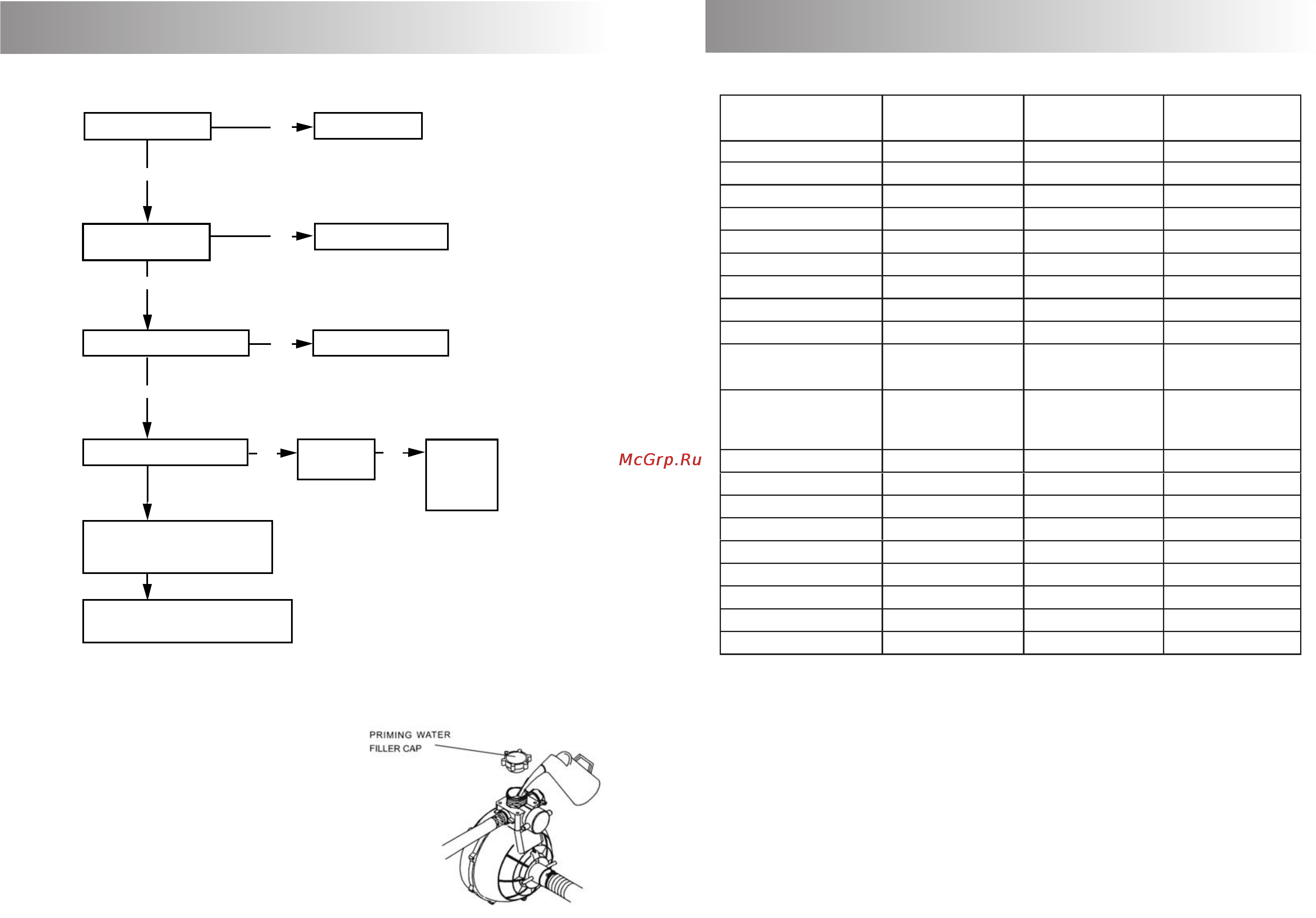

9. SPECIFICATIONS8. TROUBLESHOOTING
When the engine will not start:
When the Pump will not Pump Water:
Step 1.
Is the pump fully primed?
– check water level in pump chamber.
Fill with clean fresh water.
Step 2. Is the Suction Hose strainer clogged?
Step 3. Are the hose bands installed securely?
Step 4. Is there any damage or twisted hose?
Step 5. Is the suction head too high?
If the water pump still does not operate,
take the water pump to an authorised dealer.
18 19
Is there fuel in the tank?
Is there enough oil in the engine?
Is there spark from the spark plug
If the engine still does not start, take the
water pump to an authorised dealer.
WARNING - Be sure there is no spilled
fuel around the spark plug. Spilled fuel
may ignite
Refill the fuel tank?
Turn the engine switch on
A
dd the recommended oil
Replace the
spark plug
Take the
water pump
to an
authorised
dealer
Is the engine switch
and fuel tap on?
NO
YES
YES
YES
YES
NO
NO
NO NO
TO CHECK:
1/ Remove the spark plug cap and clean
any dirt from around the spark plug.
2/ Remove the spark plug and install
the spark plug in the plug cap.
3/ Set the plug side electrode on the
cylinder head to ground.
4/ Pull the recoil starter, sparks should
jump across the gap.
Model High Pressure
KGP15H
High Volume Water
Transfer KGP20
High Volume Water
Transfer KGP30
Suction port (mm) dia 40mm 50mm 75mm
Discharge port (mm) dia 2 x 32mm / 1 x 40mm 50mm 75mm
Rated flow (max) 133L/min 600L/min 900L/min
Total Head (max) 70m 26m 25m
Suction head (max) 8m 8m 8m
Self-priming time at 4am 40sec 80sec 120sec
Dry weight (kg) 29kg 26kg 30kg
Overall dimension (mm) 510 x 430 x 435mm 480 x 430 x 400mm 510 x 430 x 435mm
Starting system Recoil starter Recoil starter Recoil starter
Engine Model KG200 KG160 KG200
Engine type Single cylinder,
4 stroke, OHV
petrol engine
Single cylinder,
4 stroke, OHV
petrol engine
Single cylinder,
4 stroke, OHV
petrol engine
Displacement (cc) 196cc 163cc 196cc
Bore x Stroke (mm) 68 x 54mm 68 x 45mm 68 x 54mm
Rated power 6.0hp 4.9hp 6.0hp
Cooling system Forced air-cooled Forced air-cooled Forced air-cooled
Ignition system Electronic Electronic Electronic
Spark plug (NGK) BPR5ES BPR5ES BPR5ES
Fuel tank (Lt) 3.6L 3.6L 3.6L
Fuel Unleaded petrol Unleaded petrol Unleaded petrol
Lube oil (Lt) 0.6L 0.6L 0.6L
KIP224_kipor manual water pumpfinalv2.qxd:Layout 1 4/2/10 4:36 PM Page 18
