ASUS ASMB8-iKVM

4-17

Procedure:

1. Click the

Event Filter

Tab to congure the event lters in the available slots

2. To Add an Event Filter entry, select a free slot and click

Add

to open the Add event

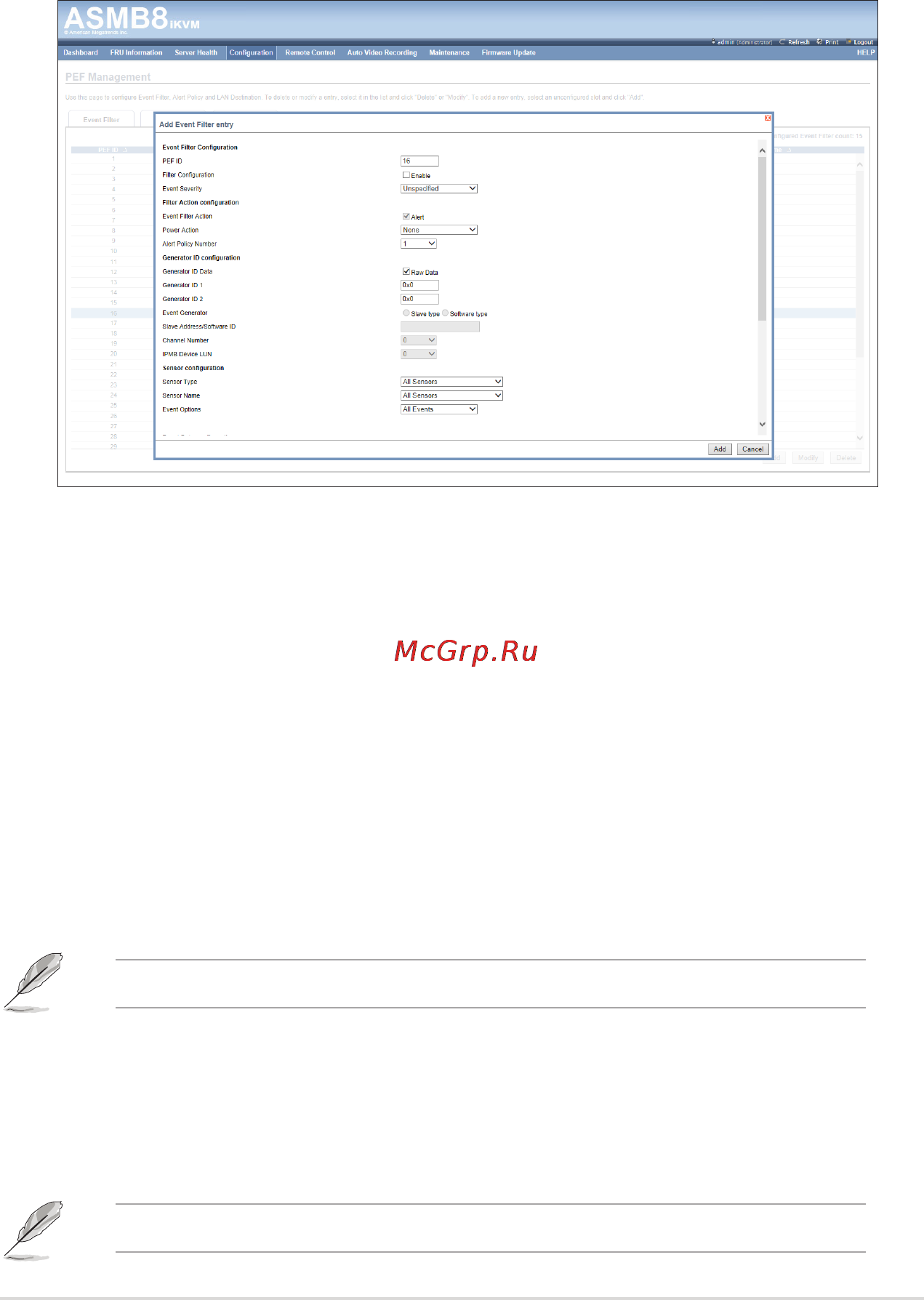

Filter entry Page. A sample screenshot of Add Event Filter Page is in seen the

screenshot below.

3. In the Event Filter Conguration section,

• PEF ID displays the ID for congured PEF entry (read-only).

• In lter conguration, check the box to enable the PEF settings.

• In Event Severity, select any one of the Event severity from the list.

4. In the Filter Action conguration section,

• Event Filter Action is a mandatory eld and checked by default, which enable PEF

Alert action (read-only).

• Select any one of the Power action either Power down, Power reset or Power

cycle from the drop down list

• Choose any one of the congured alert policy number from the drop down list.

Alert Policy has to be congured - under Conguration->PEF->Alert Policy.

5. In the Generator ID conguration section,

• Check Generator ID Data option to ll the Generator ID with raw data.

• Generator ID 1 eld is used to give raw generator ID1 data value.

• Generator ID 2 eld is used to give raw generator ID2 data value.

In RAW data eld, to specify hexadecimal value prex with '0x'.
