Asus n3150m-e [19/59] Internal connectors
![Asus n3150m-e [19/59] Internal connectors](/views2/1162350/page19/bg13.png)
ASUS N3150M-E / N3050M-E
1-11
• Werecommendthatyouconnectahigh-denitionfrontpanelaudiomoduletothis
connectortoavailofthemotherboard’shigh-denitionaudiocapability.
• Ifyouwanttoconnectahigh-denitionfrontpanelaudiomoduletothisconnector,
set the Front Panel TypeitemintheBIOSsetupto[HD].Ifyouwanttoconnectan
AC'97frontpanelaudiomoduletothisconnector,settheitemto[AC97].Bydefault,
this connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for
details.
2. Serial port connector (10-1 pin COM)
Thisconnectorisforaserial(COM)port.Connecttheserialportmodulecabletothis
connector,theninstallthemoduletoaslotopeningatthebackofthesystemchassis.

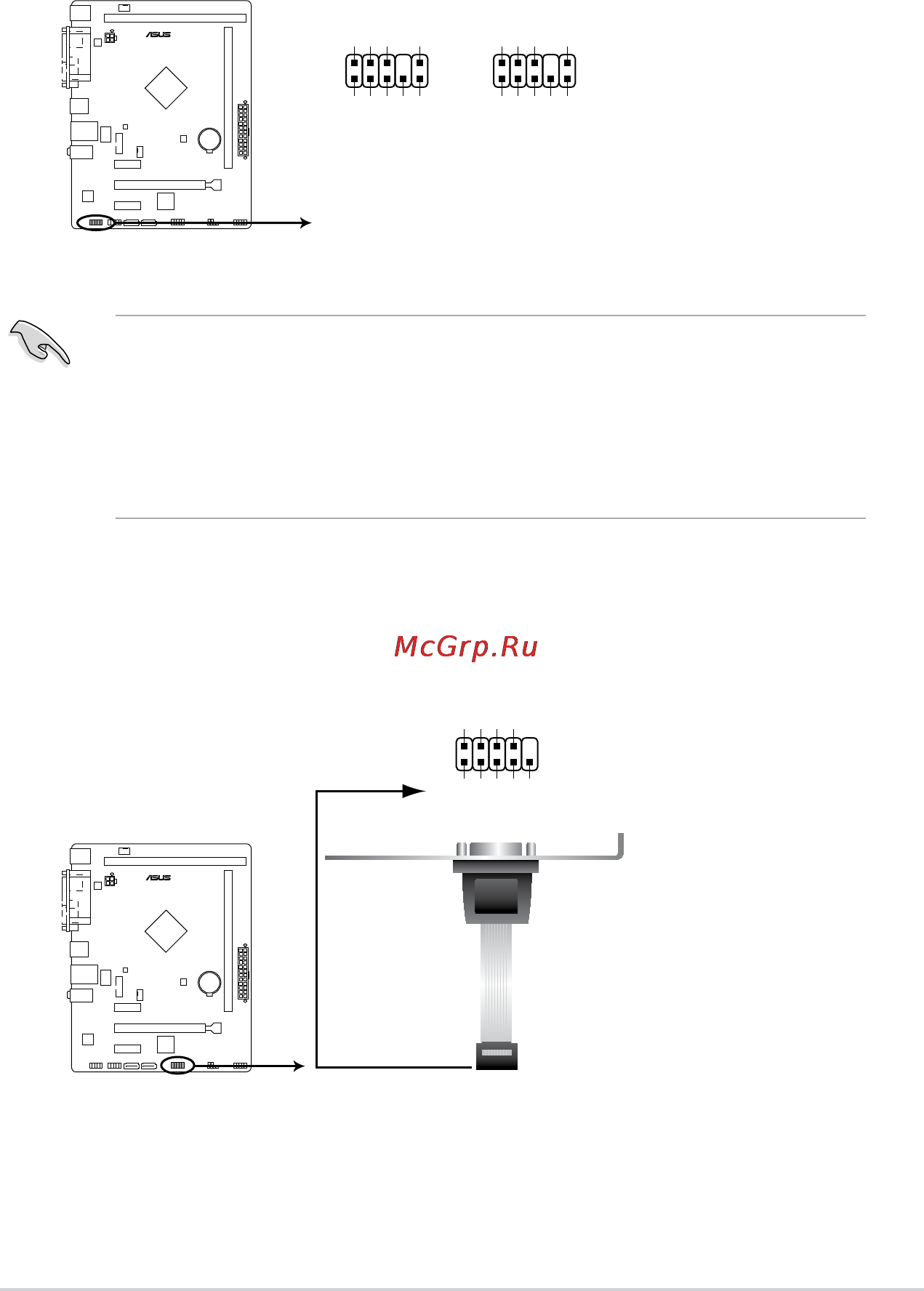

1.7.2 Internal connectors
1. Front panel audio connector (10-1 pin AAFP)
Thisconnectorisforachassis-mountedfrontpanelaudioI/Omodulethatsupports
eitherHDAudioorlegacyAC`97audiostandard.Connectoneendofthefrontpanel
audioI/Omodulecabletothisconnector.
N3150M-E
N3050M-E
N3150M-E / N3050M-E Front panel audio connector
AAFP
PIN 1
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
N3150M-E
N3050M-E
N3150M-E / N3050M-E Serial port connector
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
