ASUS MAXIMUS VIII EXTREME/ASSEMBLY

2-15

Chapter 2

2.3 Motherboard rear and audio connections

2.3.1 Rear I/O connection

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

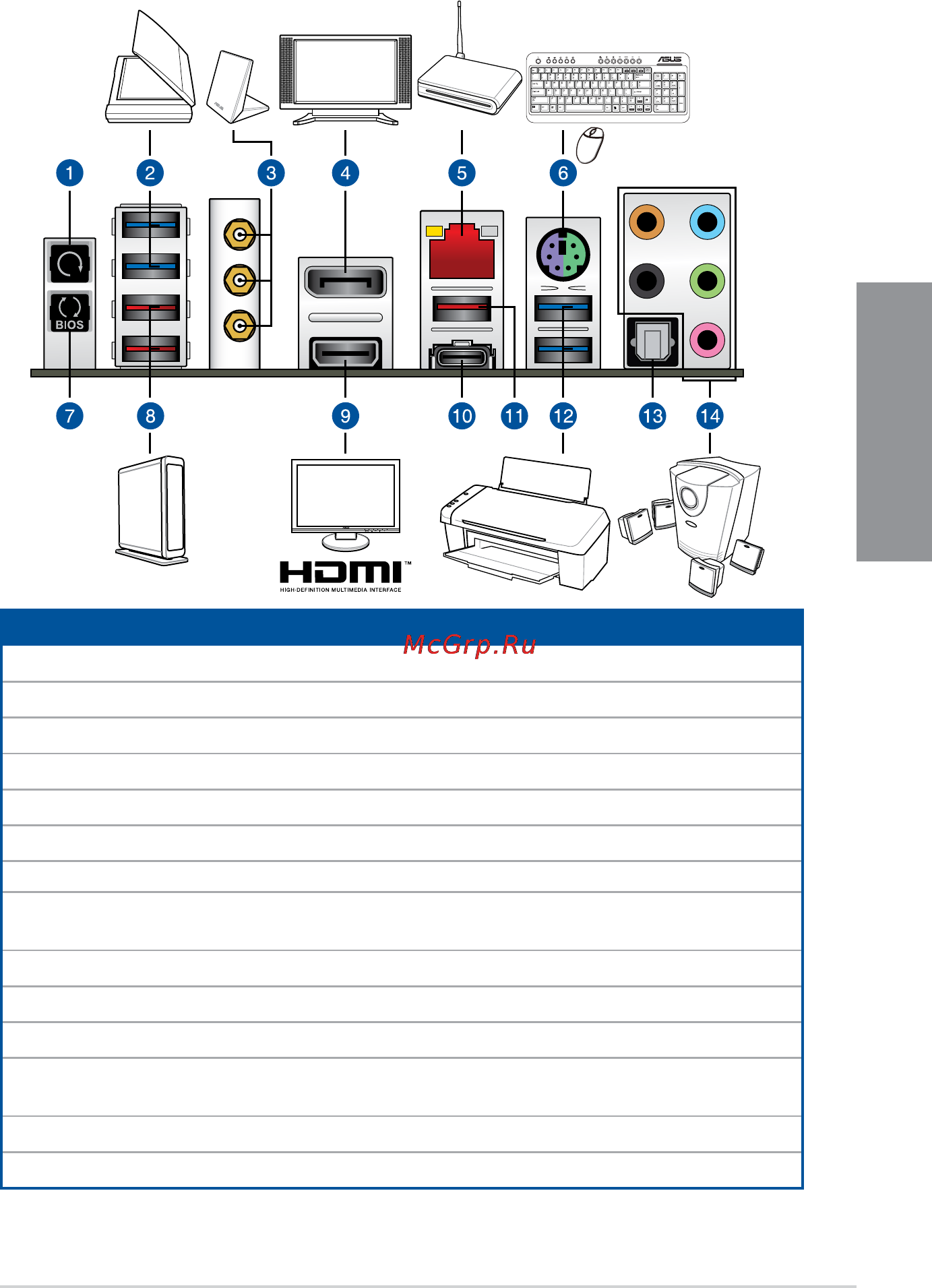

Rear panel connectors

1. Clear CMOS button

ASMedia

USB 3.0 port E12. Supports AI Charger+ feature and USB 3.1 Boost.

3. ASUSWi-FiGO!module(Wi-Fi802.11a/b/g/n/acandBluetoothV4.0)

4. DisplayPort

5. LAN(RJ-45)port*

6. PS/2Keyboard/Mousecomboport

7. USB BIOS Flashback button

ASMedia

USB 3.1 Type-A port E34. Supports AI Charger+ feature and USB 3.1

Boost.

9. HDMIport

10.

Intel

USB 3.1 Type-C port C2. Supports USB 3.1 Boost.

11.

Intel

USB 3.1 Type-A port A1. Supports USB 3.1 Boost.

12.

Intel

USB3.0port5and6.UpperportsupportstheKeyBotIIfeature,andlower

port supports USB BIOS Flashback function. Supports USB 3.1 Boost.

13. Optical S/PDIF OUT port

14. AudioI/Oports**
