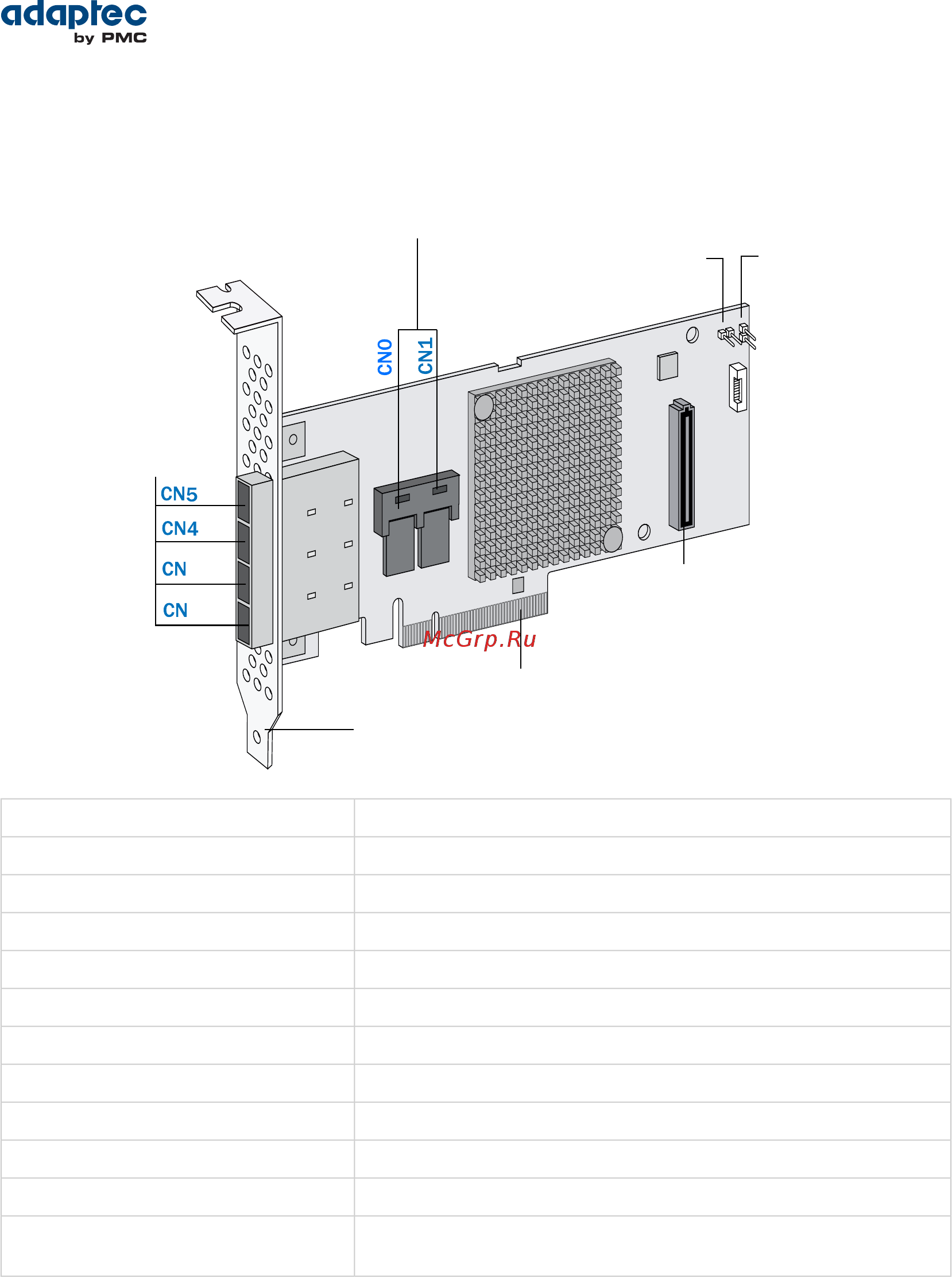

About the Adaptec RAID 78165
The Adaptec RAID 78165 is a SAS RAID controller with these features:
Ext. Alarm
connector
Daughterboard
connector
PCIe x8 connector
Mounting bracket
HDA mode
connector
4 external
mini-SAS HD
connectors
2 internal mini-SAS HD connectors
2
3
Low-prole MD2Form Factor
PCIe 3.0Bus compatibility
x8PCIe bus width
6 Gb/s per portData transfer rate
24Phys (Unied Serial Ports)
1024 MB DDR3Standard cache
2 mini-SAS HD x4 (SFF-8643)Connectors, internal
4 mini-SAS HD x4 (SFF-8644)Connectors, external
24 direct-attached (or up to 256 with expanders)Maximum number of disk drives
IBPI and SGPIO (Serial General Purpose Input/Output)Enclosure Support
YesOnboard speaker
Adaptec Flash Backup Module AFM-700 (optional, sold separately)Zero Maintenance Cache Protection
Module
30Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
