Notes:

After modifying the password with immediate effect, the parameters will not be lost though is

powered off.

4.2.3 Port Setting

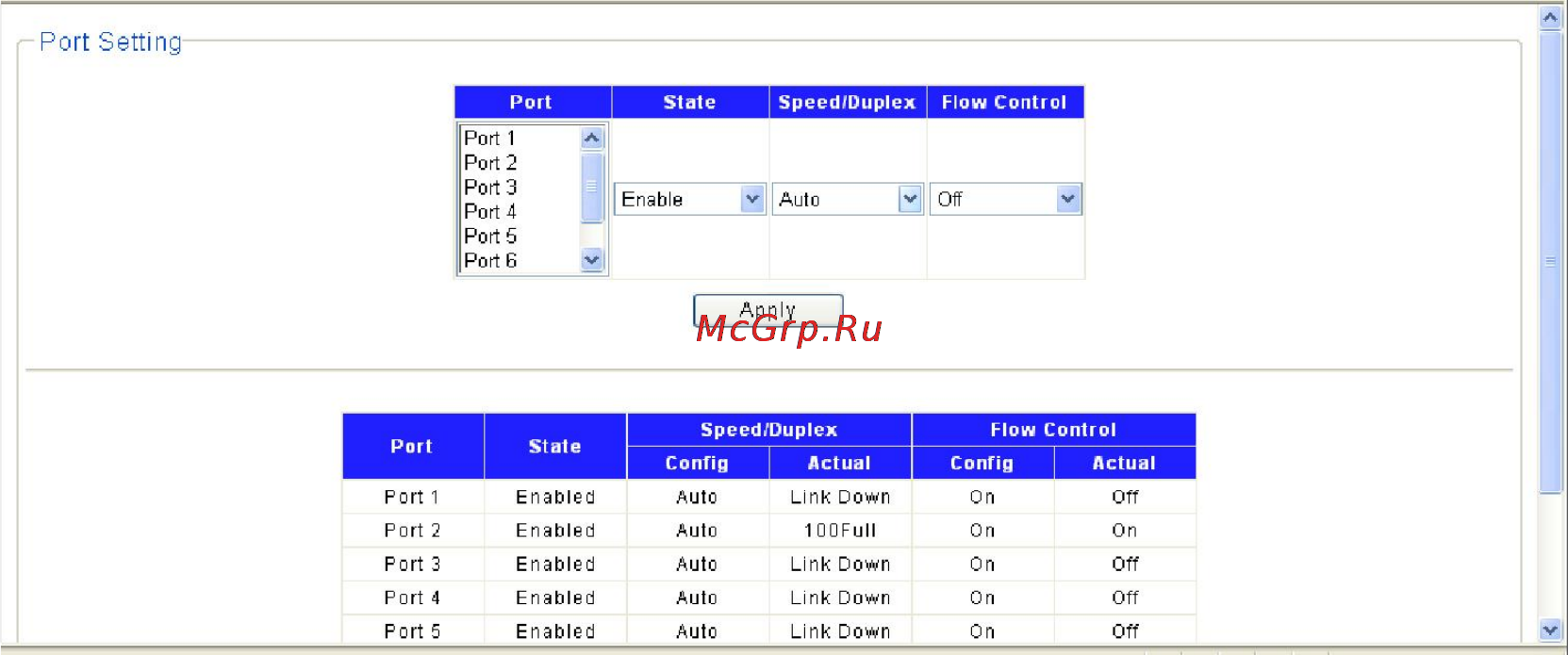

Figure 4-2-4

On this page, you can configure the basic parameter for the ports .When the port is disabled, the

packers on the port will be discard. Shut down the port which is vacant for a long time can

reduce the power consumption effectively. And you can enable the port when it is in need. The

parameters will affect the working mode of the ports, please set the parameters appropriate.

Status: Allows you to Enable/Disable the port .When Enable is set, the port can forward the

packets normally.

Speed and Duplex: Select the speed and Duplex mode for the port .The device connected to the

switch should be in the same Speed and Duplex mode with the switch .When “Auto” is set, the

Speed and Duplex mode will be determined by auto-negotiation. But the SFP port, this Switch

does not support auto-negotiation.

Flow Control: Allows you to Enable /Disable the Flow Control feature .When Flow Control is

enabled, the switch can synchronize the speed with its peer to avoid the congestion.

4.3 Configuration

4.3.1 Link Aggregation

Link Aggregation is to combine a number of ports together to make a single high-bandwidth data
