Netis DL4304D [2/12] Hardware installation

ADSL2+ Modem With Wireless-N Router Quick Installation Guide

1. Hardware Installation

Step 1: Connect the ADSL Line.

Method one: Plug one end of the twisted-pair ADSL cable into

the ADSL LINE port on the rear panel of the router, and insert

the other end into the wall socket.

Method two: You can use a separate splitter. The external

splitter has three ports:

• Line: Connect to the wall jack

• Phone: Connect to the phone sets

• Modem: Connect to the ADSL LINE port of the router

Step 2: Connect the Ethernet cable. Attach one end of a network

cable to your computer's Ethernet port or a regular hub/switch port,

and the other end to the LAN port on the router.

Step 3: Power on the computers and LAN devices.

Step 4: Attach the power adapter. Connect the power adapter to the

power connector on the rear of the device and plug in the adapter to

a wall outlet or power extension.

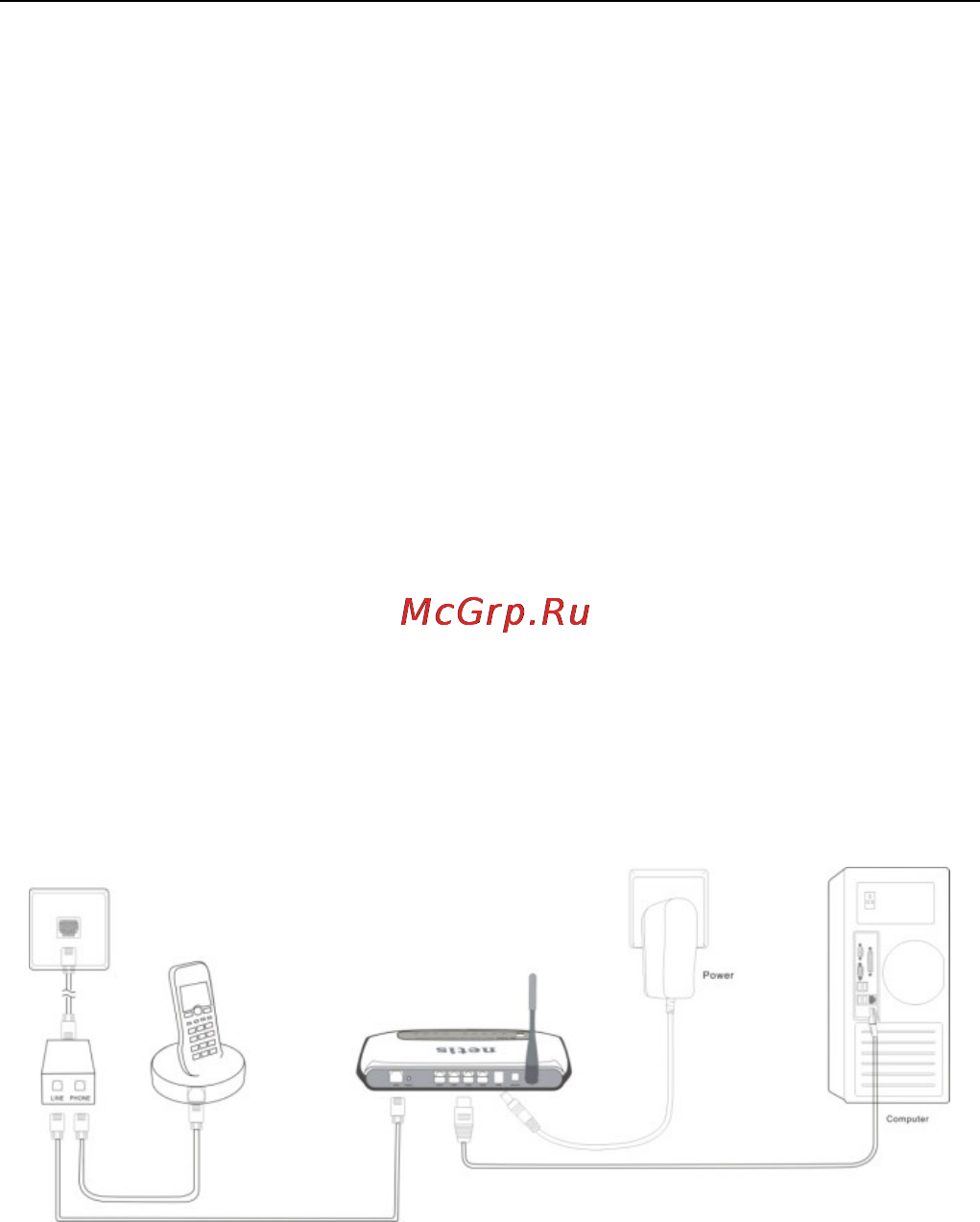

Figure 1
