Netis WF-2405 [22/59] Static

Portable Wireless-N Router/AP User Manual

3.3.3. Static

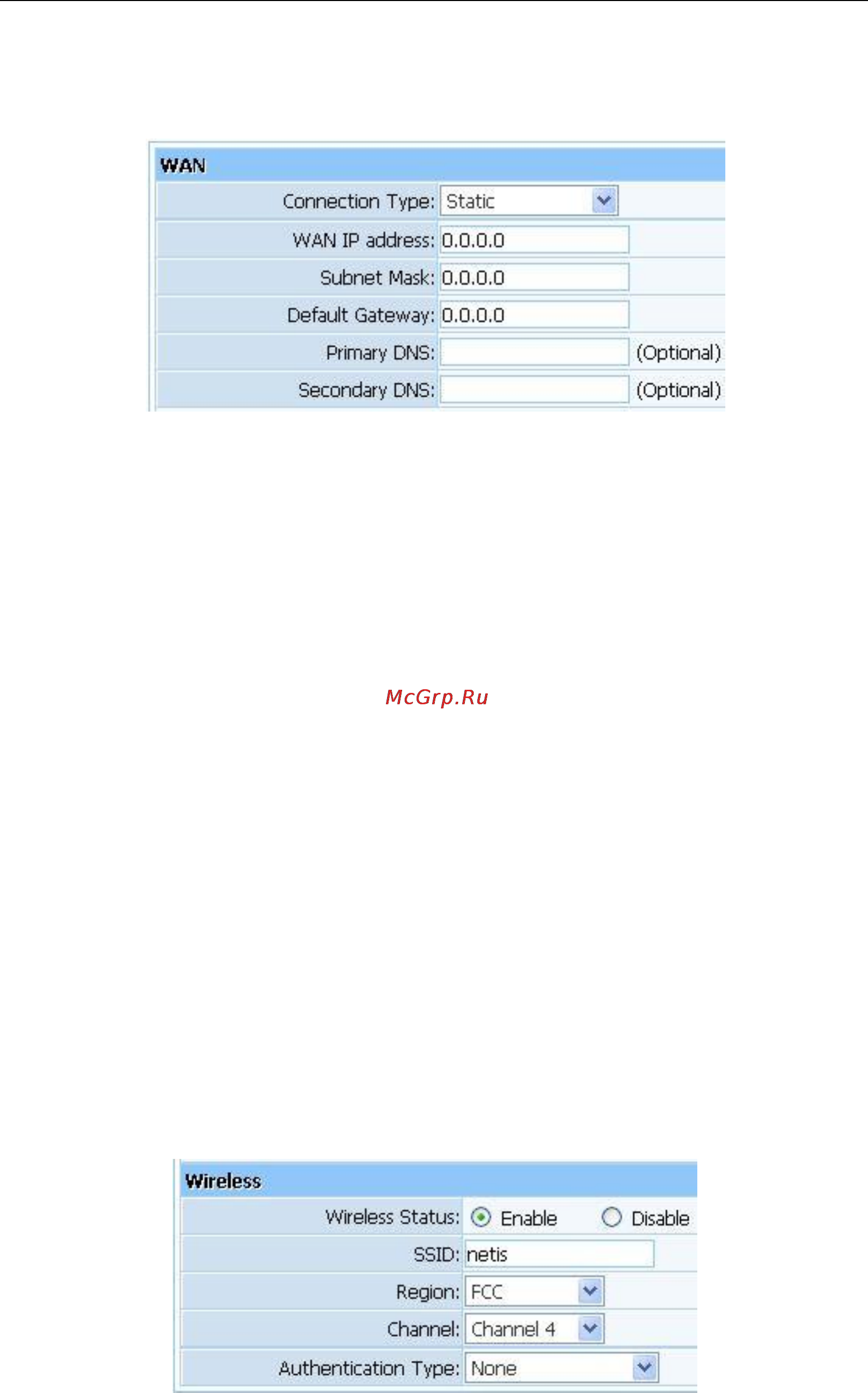

Figure 3-17

This item should only be used when users use a static IP address to access Internet, you should

input your “WAN IP address”, ”subnet mask”,” default gateway” and “DNS server (domain

name server)” according to the information provided by your ISP. And every IP address should

be input in appropriate IP field, a IP address only divided into four IP octets by sign“.” is

acceptable.

 WAN IP address: The IP address that your Internet access into

 Subnet mask: Specify a Subnet Mask for your WAN segment

 Default gateway: It is provided by your ISP

 Primary DNS: DNS server is used for resolve domain name. Your ISP will provides you

with at least one DNS IP address, input IP address of your DNS server in this field

 Secondary DNS: Input IP address of backup DNS server, or you can leave this field blank.

3.3.4. Wireless Configuration

You can choose “Enable” or “Disable” to enable or disable the wireless function. The default

setting is “enable”. If you chose the “Disable” status, the router will become a wired broadband

router without wireless function, so be careful when you choose this status.

Figure 3-18

 SSID: SSID (Service Set Identifier) is your wireless network's name shared among all
