Netis WF-2402 WF-2402D [46/61] Wireless advanced

150Mbps Wireless-N Broadband Router User Manual

AP3:

 Select radio mode is ‘REPEATER’in wireless management-basic of AP3.

 Select Repeater SSID is ‘Netis2’in wireless management-basic of AP2.

 Select Channel is ‘Channel 6’in wireless management-basic of AP2.

 The IP address of AP3 should be 192.168.1.x (1<x<255),but different from AP2.

 Select ‘LAN setup’-‘DHCP server’ ,select disable DHCP server.

4.5.5. Wireless Advanced

These settings are only for more technically advanced users who have a sufficient knowledge

about wireless LAN. These settings should not be changed unless you know what effect the

change will have on your AP.

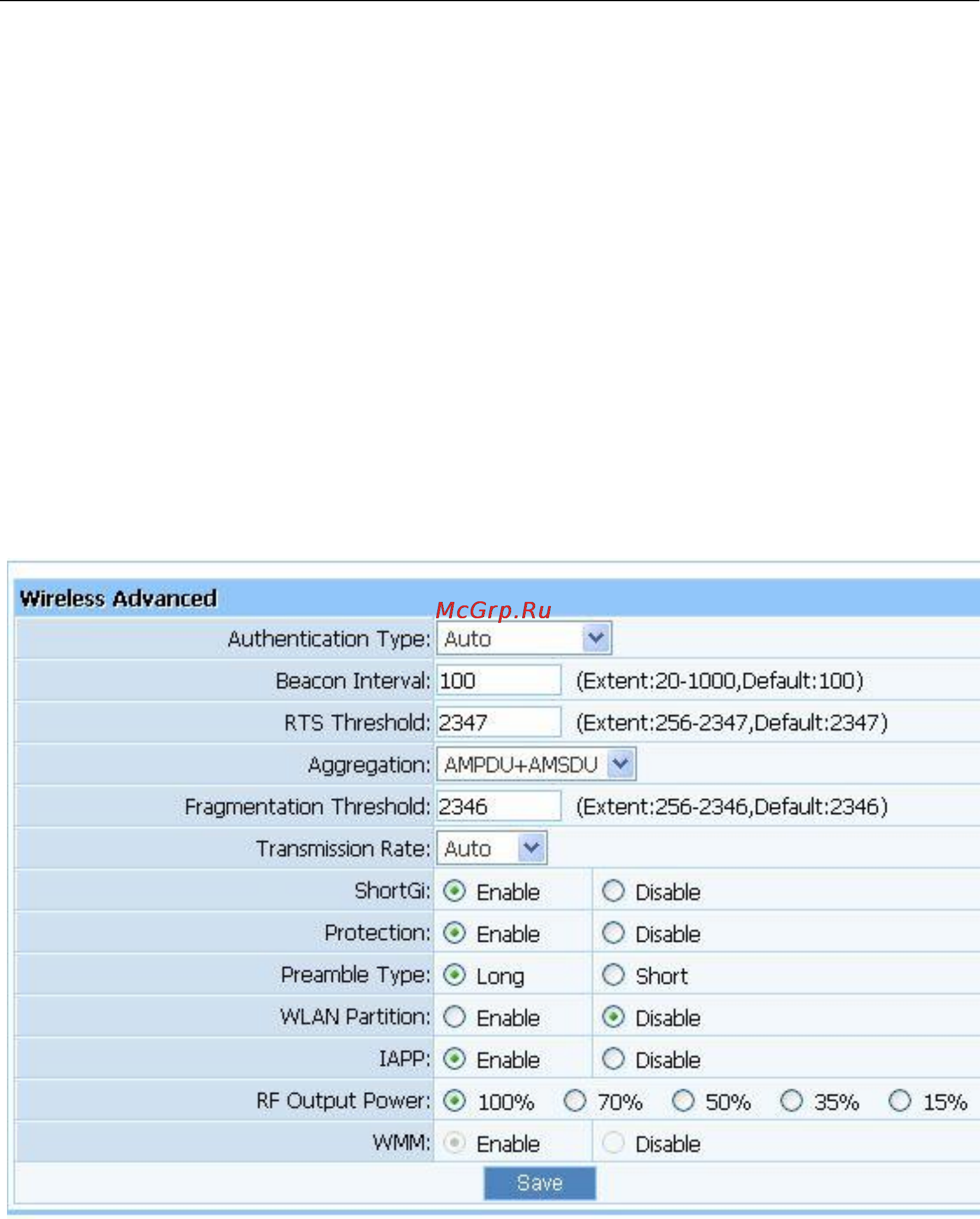

Figure 4-36

 Authentications type: The default is set to “Auto”, which allows “Open System” or

“Shared Key” authentication to be used. Select “Shared Key” if you only want to use

“Shared Key” authentication (the sender and recipient use a WEP key for authentication).

 Beacon Interval: The interval time of this 150Mbps Wireless-N Broadband Router

broadcast a beacon. Beacon is used to synchronize the wireless network. The valid interval

is 20-1000, the default is 100.

 RTS Threshold: You can set RTS Threshold value in this field, the valid range should be

256-2347 and default value is 2347. If a network packet is smaller than the preset RTS

threshold size, the RTS/CTS mechanism will not be enabled.
