Concord absorber xt [11/16] Caution

The CONCORD ABSORBER must be adjusted to the size of the child.

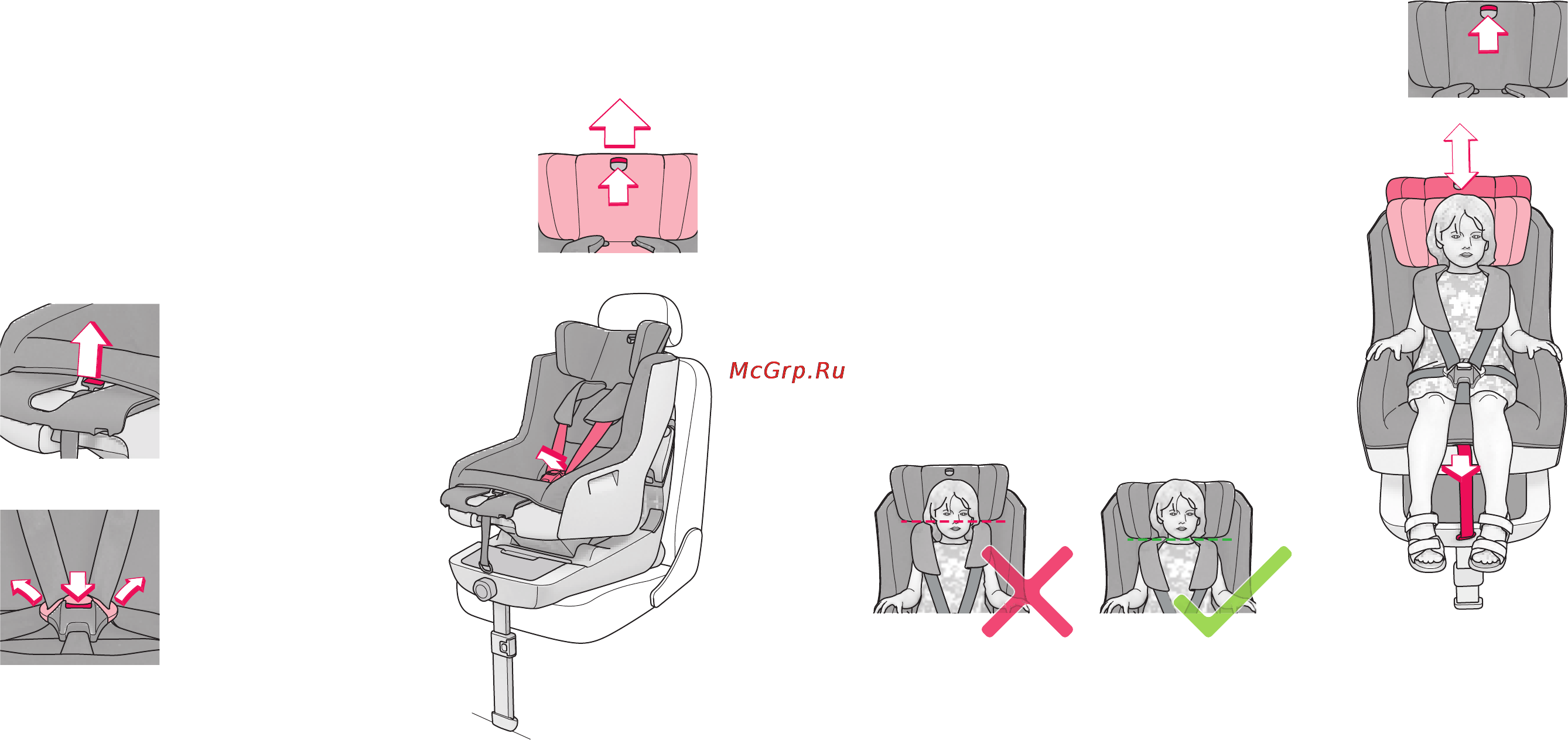

Press and hold the size adjustment control (02) and

move the headrest (01) of the CONCORD ABSORBER

into the desired position.

Releasing the control button (02) will lock the

headrest (01) in its current position.

The shoulder harness guide should be situated

slightly above the child‘s shoulder. The shoulder

harnesses should lie in the middle between the

child‘s neck and the outer edge of the shoulder.

Tighten the harness by pulling the strap of the

central adjuster (09) until it lies snug against the

child‘s body.

CaUTiOn!

• Theseatbeltsmustnotbetwisted.

• Theharnesslockmustbelockedproperlyandtheharnessesmustlie

snug against the child‘s body.

• Theheadrest/harnessguidemustbeadjustedtothesizeofthechildand

latched securely in place.

CaUTiOn

Check the CONCORD ABSORBER for proper mounting and correct seat

belt tension, and for secure locking of all locking mechanisms before each

use.

Press the size adjustment control (02) and move the

headrest (01) of the CONCORD ABSORBER into its

top-most position.

Push the arrester of the

central adjuster upwards,

while at the same time

pulling the 5-point

harness system forward

by the lap harnesses.

Open the harness lock

and place the harnesses

to the sides and forward.

Place your child onto the seat as far back as possible.

Bring together the shoulder/ lap harnesses and the central harness in front of

the child and push the harness lock closed.

Check that the harness lock has latched shut correctly.

Ensure that none of the harness straps are twisted.

_ SECURinG YOUR CHilD in THE COnCORD aBSORBER
