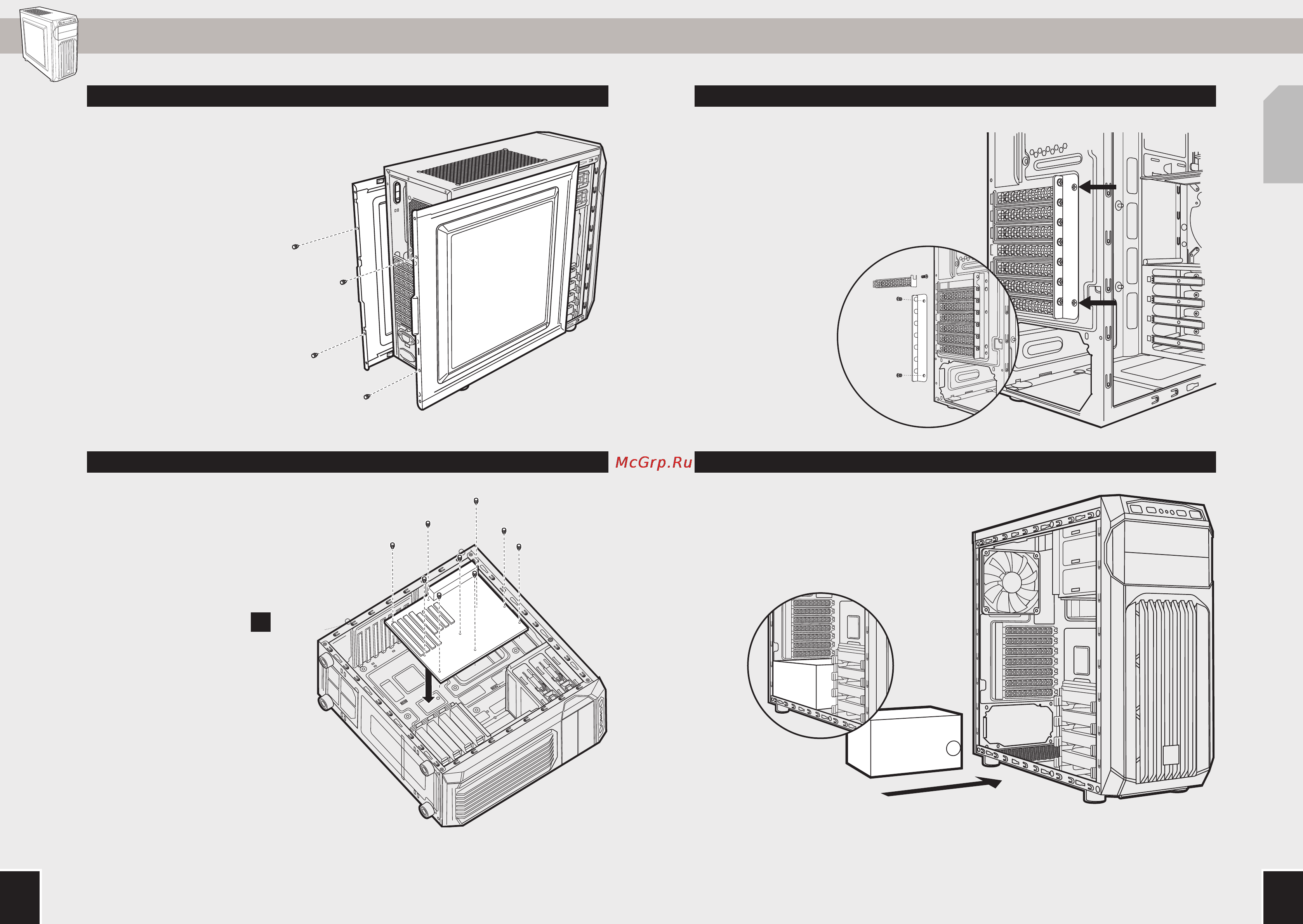

3. Installing PCI-E/PCI Card(s)1. Removing the Side Panels

SPEC-01

Simply remove the

thumbscrews then slide the

side panels back and out.

Note: Corsair recommends

removing both side panels and

setting them aside when building

your system to avoid accidental

damage. Both side panels are

interchangeable and should be

removed to reduce clutter.

Remove thumbscrews and

corresponding slot cover(s).

Install the add-on card and

secure with thumbscrews.

Position the PSU on the

bottom of the case then align

the case holes and secure the

PSU with screws provided with

your power supply.

2. Installing the Motherboard 4. Installing the PSU (Power Supply Unit)

First, install your

motherboard’s I/O shield (see

your motherboard’s manual

for guidance).

Align your motherboard with

the pre-installed standos.

Use the provided screws

to secure the

motherboard to the

motherboard tray.

STEP 03

STEP 02

STEP 04

STEP 02

STEP 04
