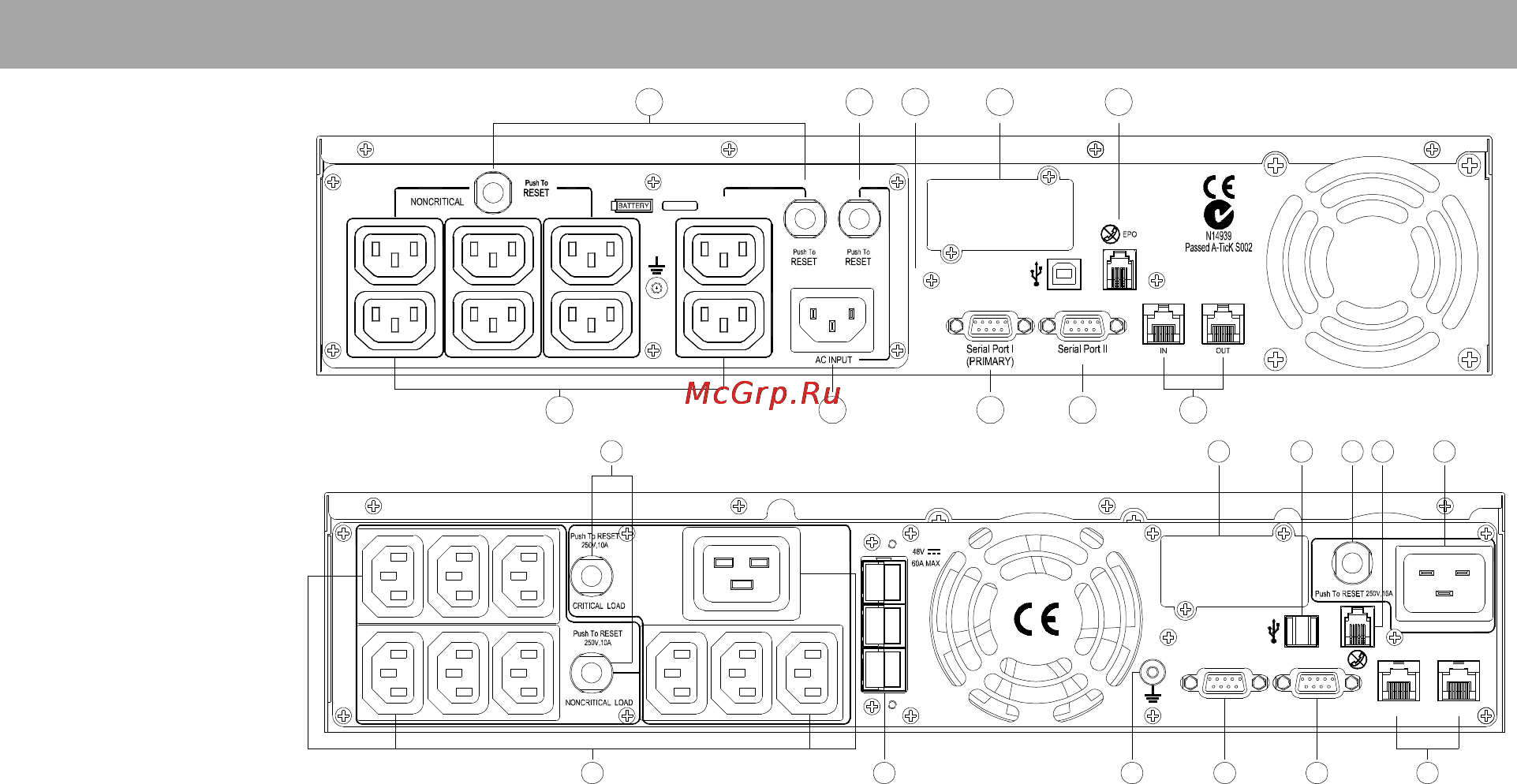

5. Battery Backup, Surge Protected and AVR protected Outlets
This unit provides a total of six outlets with battery backup and surge protection. They ensure that connected
equipment will keep an uninterrupted operation over a period of time, during a power failure.
Critical /Non-critical
It is possible to program the unit in a way so that the outle block marked as “non-Critical”, will stop the provision of power to connected
equipment after a certain period of time, thus making more runtime available for the equipment connected on the outlets marked as
“Critical”. In other words, the user can establish runtime priority for certain connected equipment, maximizing its “availability” during a
prolonged power outage. This type of control takes place with the use of the provided PowerPanel
®
Business Edition S/W.
6. AC Inlet
Connect the AC Power cord to a properly wired and grounded outlet.
7. Output Circuit Breaker
The circuit breaker serves to provide output overload and fault protection.
8. Input Circuit Breaker
The circuit breaker serves to provide input overload and fault protection.
9. USB port to PC
This is a connectivity port allowing communication and control among the UPS and the connected computer.
You should install on your computer the PowerPanel
®
Business Edition software appropriate to the operating
system you are using.
10. Surge Protected Communication Ports - RJ11/RJ45
These ports are being used to protect from various surge-conditions the standard RJ-45/RJ-11 based, (ADSL,
LAN, Phone/Modem-Lines), cabling systems.
11. Serial Port I (Primary)
Serial port I allow for bi-directional communication among the UPS and the computer. The UPS can control the
computer’s shutdown in case of an emergency, and at the same time, the computer can monitor the UPS and
alter its various programmable parameters.
12. Serial Port II (Secondary)
Serial Port II allows the UPS to initiate the connected computer’s graceful auto-shutdown in case of an
emergency.
13. SNMP/HTTP Network slot
Remove the cover panel to install optional SNMP, allowing your UPS be controlled and monitored via a network
connection.
14. EPO (Emergency Power Off) Port
Allow for an emergency UPS Power-Off from a remote location.
BASIC OPERATIO
N (continued)
PR1000ELCDRT2U
PR1500ELCDRT2U
PR2200ELCDRT2U
PR3000ELCDRT2U
