Section 1 - Product Overview

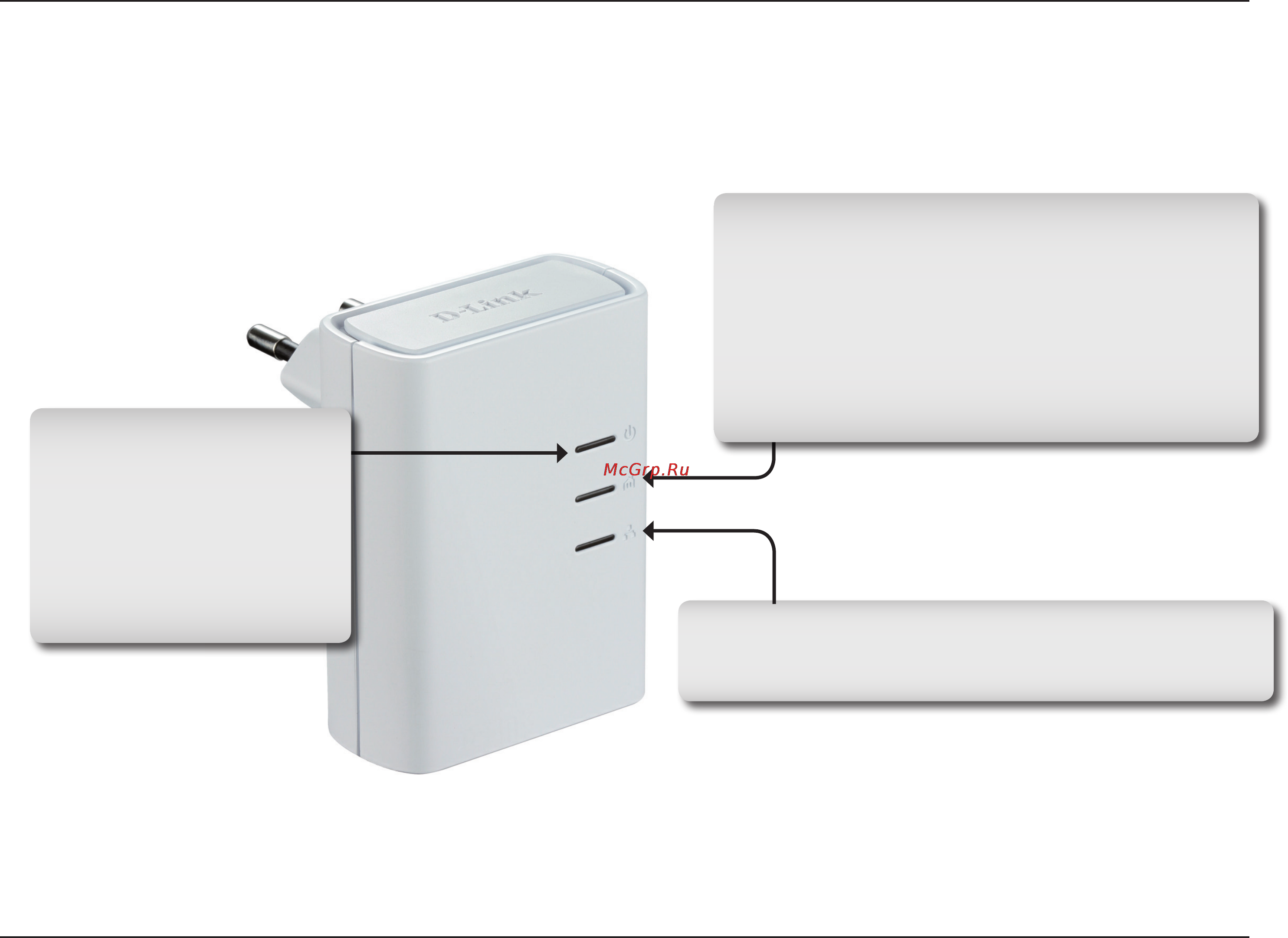

Hardware Overview

LEDs

Ethernet LED

• Solid. The Ethernet port is linked.

• O. There is no Ethernet connection.

Powerline LED

• Solid. The device is connected to a Powerline network.

• O. The device has not found any other compatible Powerline

devices using the same encryption key.

The color indicates the Powerline link rate:

• Green. The Powerline link rate is best.

• Amber. The Powerline link rate is better.

• Red. The Powerline link rate is good.

Power LED

• Solid. The device is receiving

electrical power.

• Blinking. The device is setting

itself up after reset or simple

connect button was pressed or

power saving mode enabled.

• O. The device is not receiving

electrical power.
