D-Link dhp-309av [8/15] Hardware installation

8D-Link DHP-308AV/DHP-309AV User Manual

Section 2 - Installation

Hardware Installation

Power

Plug in the DHP-308AV into an AC wall outlet or power strip.

Note: Power source is conrmed when the Power LED on the DHP-308AV is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable

connector located on the DHP-308AV and attach the other

end of the Ethernet cable to the network or PC. Network

Connectivity is conrmed when the Ethernet LED on the

DHP-308AV are illuminated.

Power Saving Mode Enabled

When the Ethernet link activity being down for 5 minutes,

the DHP-308AV will automatically go into power saving

mode. The Power LED will blink intermittently.

WARNING! D-Link powerline devices cannot be congured while in

Power Saving Mode enabled.

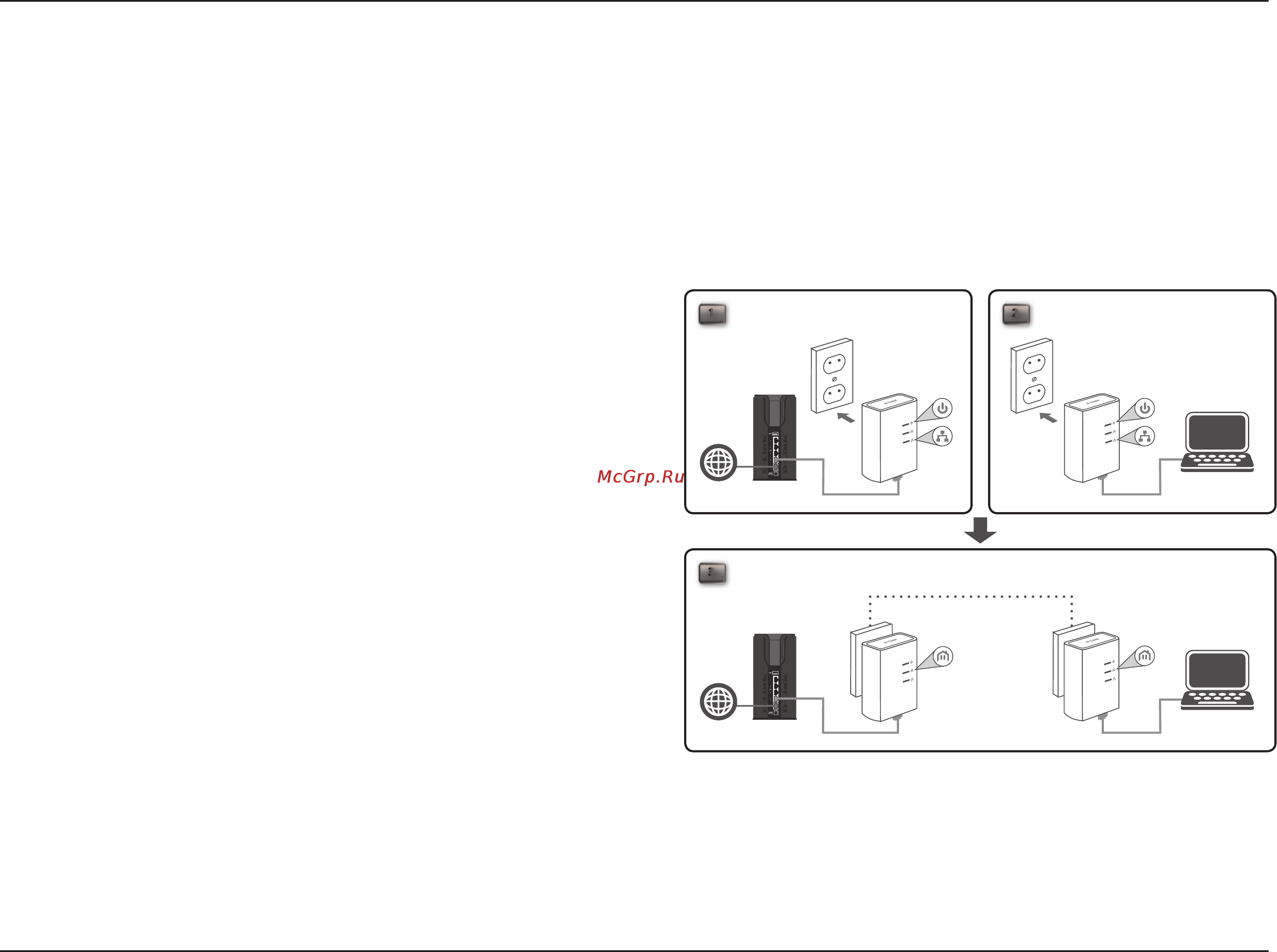

ROOM A ROOM B

DHP-308AVDHP-308AVRouterInternet

1 2

ROOM A ROOM B

DHP-308AVDHP-308AVRouterInternet
