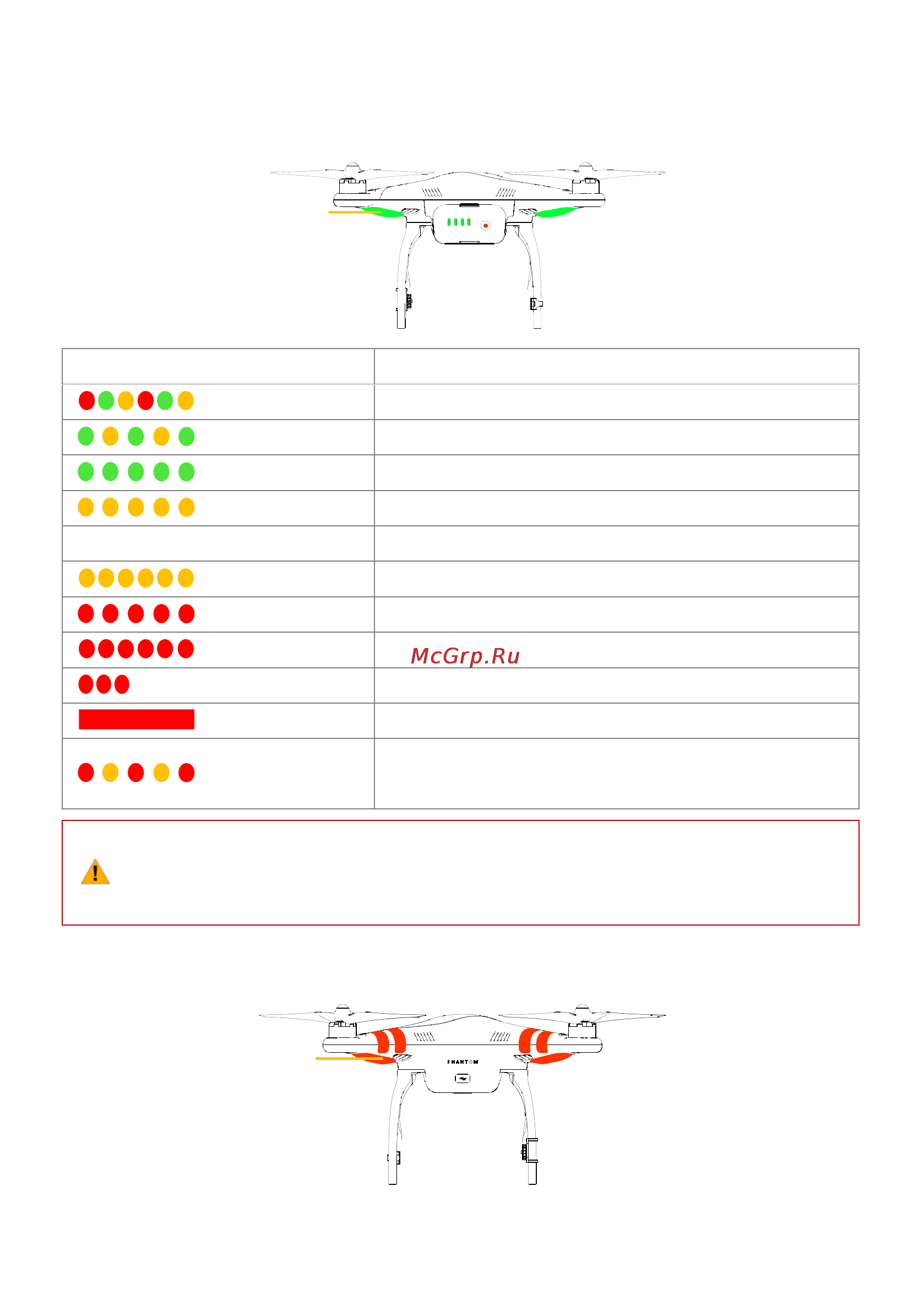

1.3 LED Flight Indicators Description

1. LED flight indicators are used to show the aircraft’s current status. Once powered on, the indicators will light

up.

LED flight

indicators

Aircraft in Normal status

Descriptions

Power On Self-Test

Warming Up & Aircraft cannot take off during warming up

Ready to Fly

Ready to Fly (non-GPS)

Aircraft in abnormal status

Warnings and errors

Remote Control Signal Lost

Level Low Battery Capacity Warning

Not Stationary or Sensor Bias is too big

Errors & Aircraft cannot fly.

Compass data abnormal because of ferro-magnetic interference or

the compass needs calibration.

（1） The LED indicators diagram above are for Phantom 2 mode. In Naza-M mode, LED indicators

will work according to the Naza-M flight control system.

（2） Connect to the PHANTOM 2 Assistant for detailed information about warnings and errors.

2. The front LEDs are for indicating where the nose of the aircraft is. They light up solid red only after the motors

have spooled up.

The front

LEDs
