Dell p2714h [12/72] About your monitor
![Dell p2714h [12/72] About your monitor](/views2/1166414/page12/bgc.png)

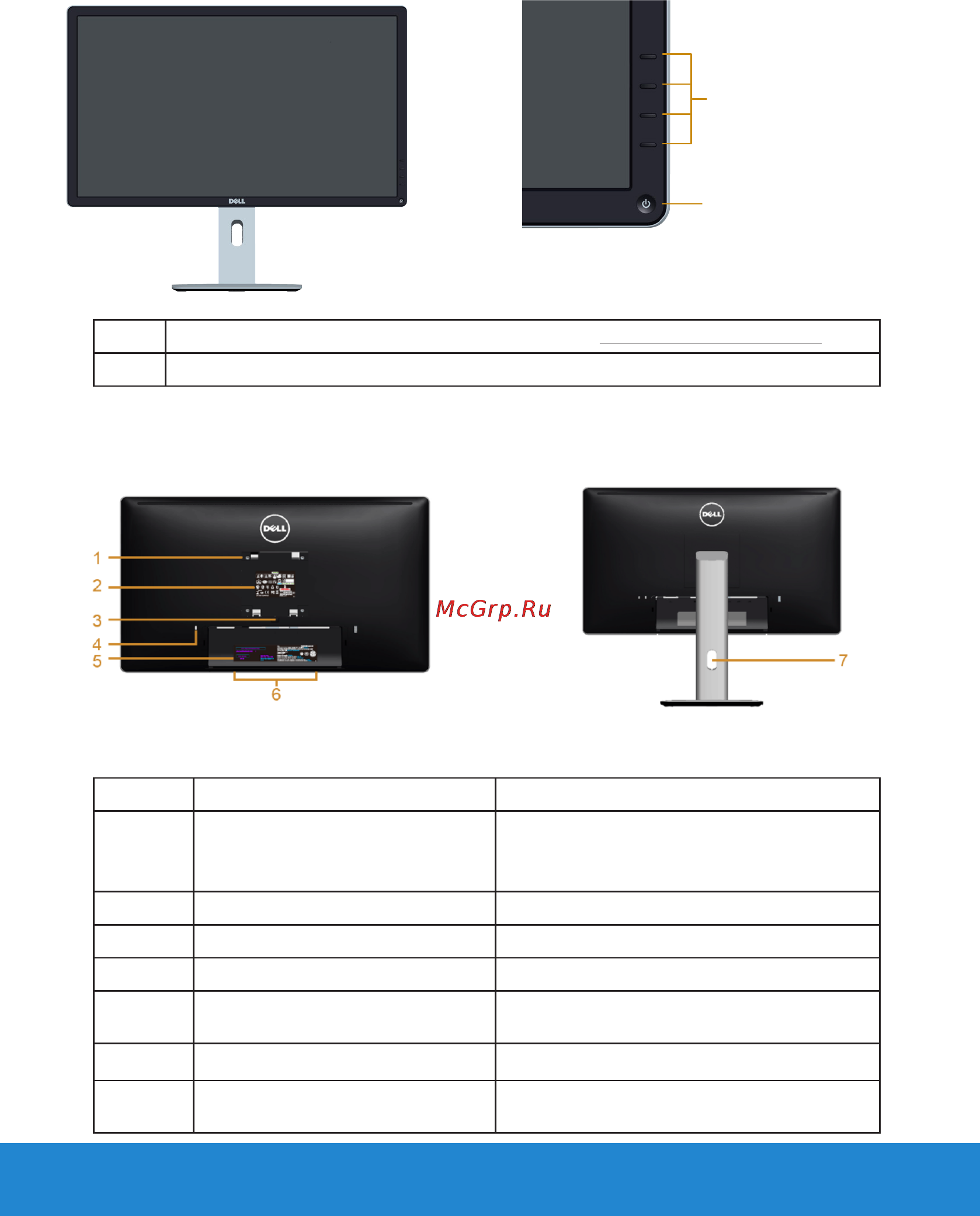

Identifying Parts and Controls
Front View
1
2
Front panel controls
1. Function buttons (For more information, see Operating the Monitor)
2 Power On/O button (with LED indicator)
Back View
Back View with monitor stand
Label Description Use
1 VESA mounting holes (100
mm x 100 mm - behind
attached VESA Cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x
100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand release button Release stand from monitor.
4 Security lock slot Secures monitor with security lock.
5 Barcode serial number label Refer to this label if you need to
contact Dell for technical support.
6 Dell Soundbar mounting slots Attaches the optional Dell Soundbar.
7 Cable management slot Use to organize cables by placing them
through the slot.
12 About Your Monitor
