18 | Removing the Hard Drive
Procedure

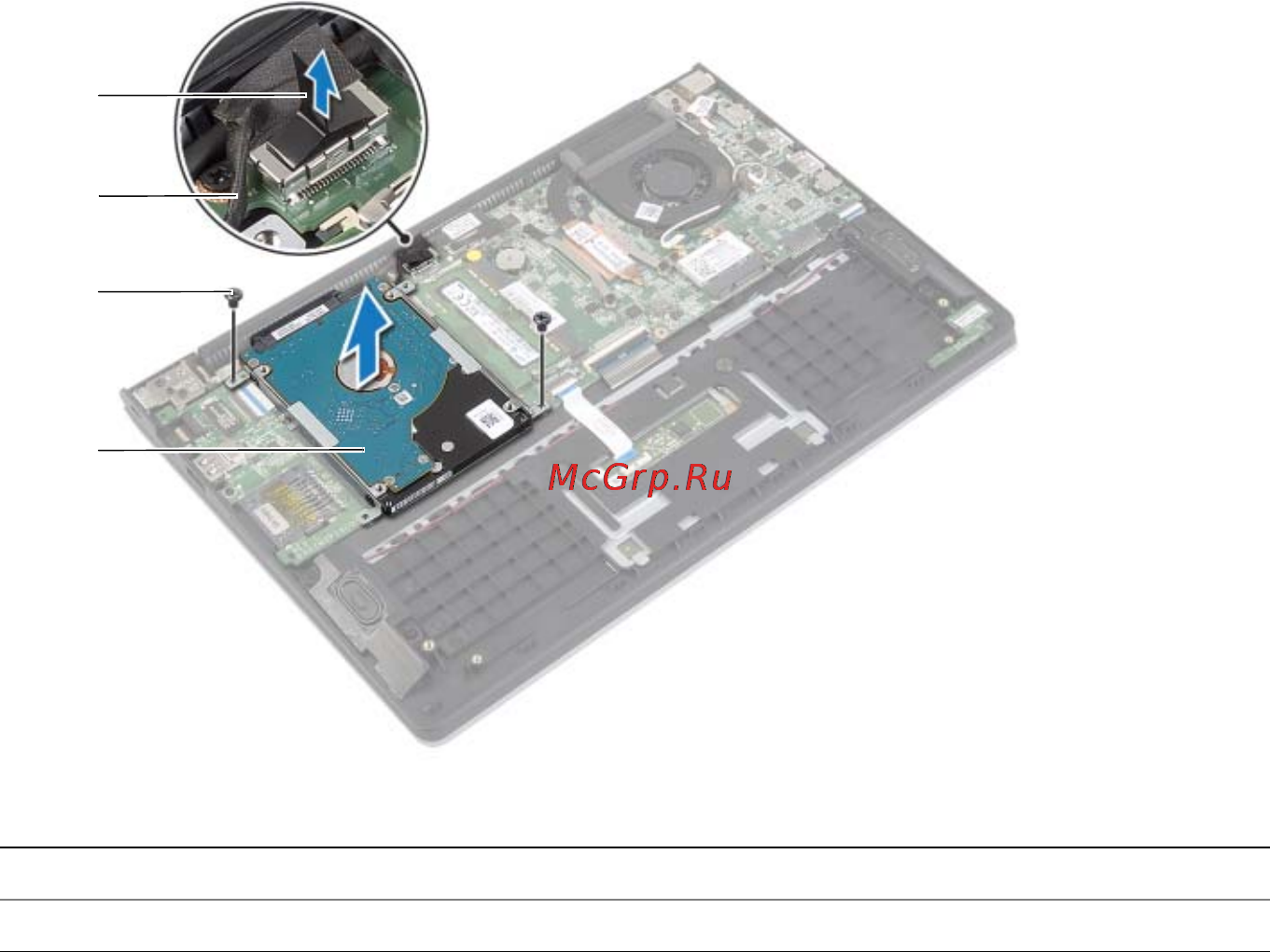

1 Remove the screws that secure the hard-drive assembly to the palm-rest assembly.
2 Using the pull-tab, disconnect the hard drive cable from the system board.
3 Lift the hard-drive assembly, along with its cable, off the palm-rest assembly.
1 pull-tab 2 hard-drive cable
3 screws (2) 4 hard-drive assembly
