About Your Monitor  11

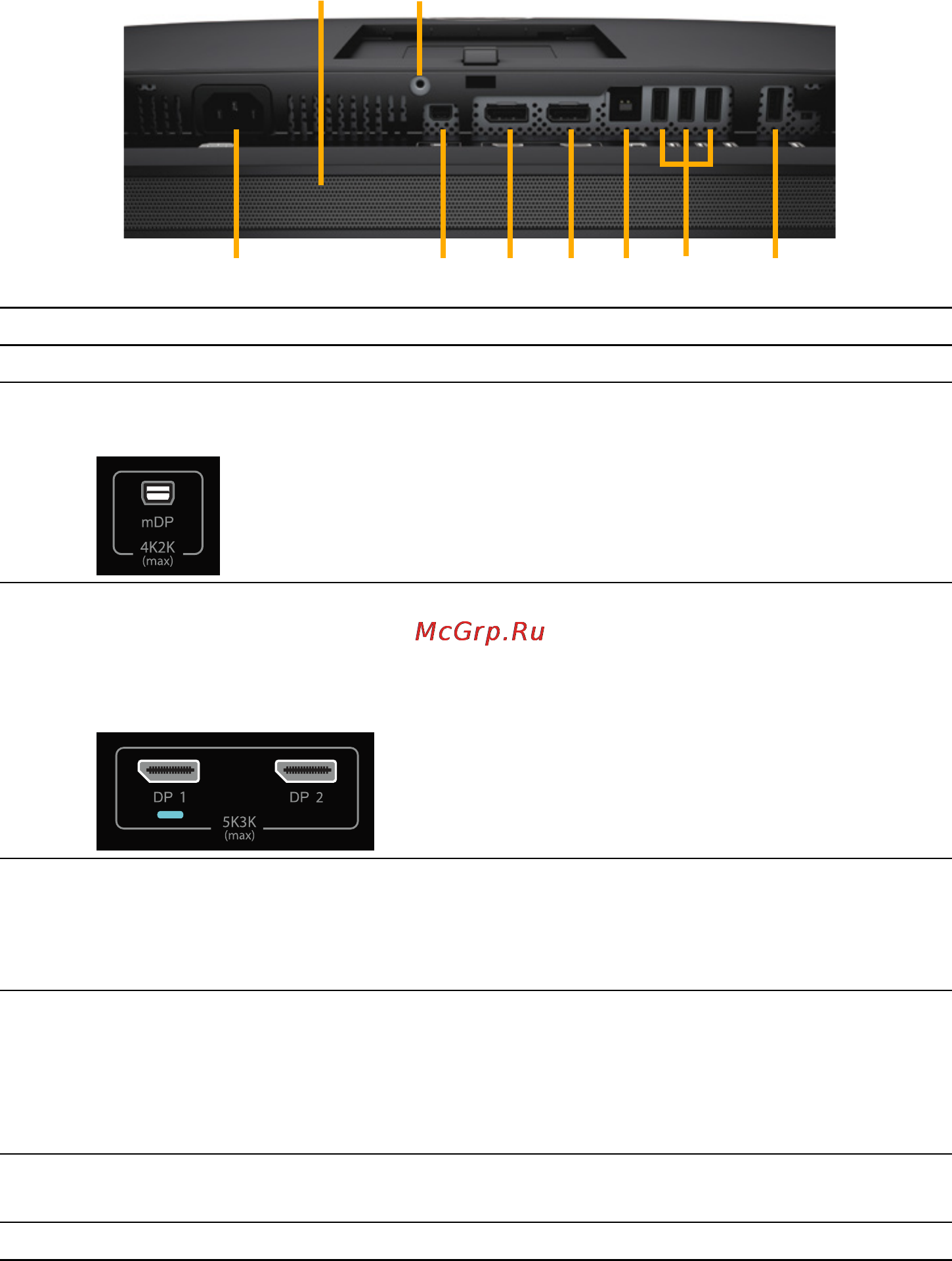

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cord.

2 Mini DisplayPort

connector

Connect your computer with:

• mDP to mDP cable, or

• mDP to DP cable

for 4K2K (max.) resolution.

3a DisplayPort in

connector 1

Connect both connectors to your computer

with a pair of:

• DP to DP cables, or

• DP to mDP cables

for 5K3K (max.) resolution.

3b DisplayPort in

connector 2

4 USB upstream port Connect the USB cable that comes with your

monitor to the computer. Once this cable is

connected, you can use the USB downstream

connectors on the monitor.

5a,

USB downstream ports Connect your USB devices. *

You can only use these connectors after

you have connected the USB cable to the

computer and USB upstream connector on

the monitor.

6 Stand lock feature To lock the stand to the monitor using a M3 x

6mm screw (screw not included).

7 Built-in speakers To output the sound from audio input.

* It is recommended to use either the port (5b) or the USB downstream port on

the rear side for your wireless USB device whenever possible.

1 2 3a 3b 4 5a 5b

7 6
