Dell inspiron 5547, 5547-8656 Инструкция по эксплуатации онлайн [13/89] 152285
![Dell inspiron 5547, 5547-8656 Инструкция по эксплуатации онлайн [13/89] 152285](/views2/1166444/page13/bgd.png)

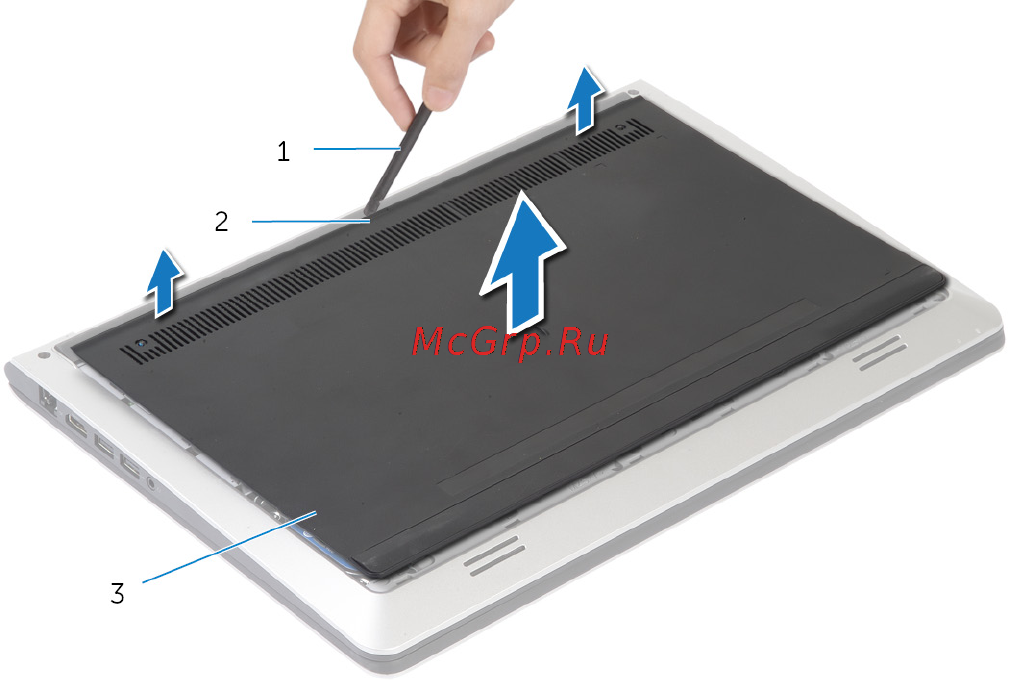

3 Using a plastic scribe, pry the base cover off the base frame.
1 plastic scribe 2 notch
3 base cover
13
