Procedure

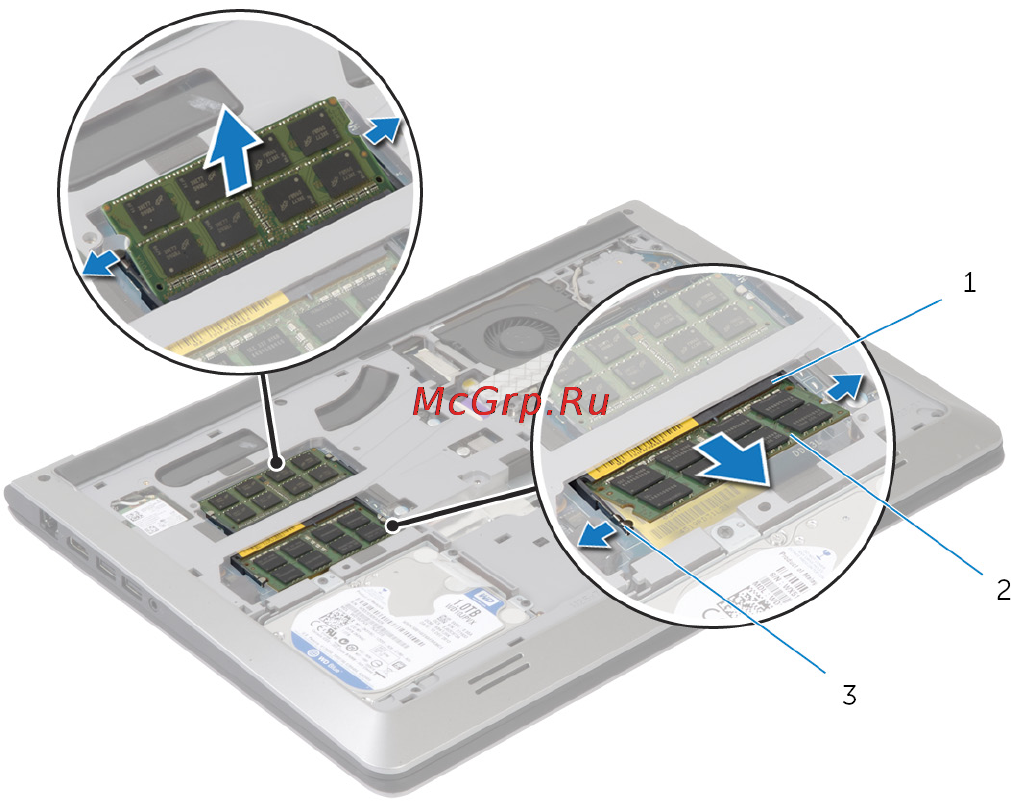

1 Using your fingertips, pry apart the securing clips on each end of the
memory-module slot until the memory module pops up.
1 memory-module slot 2 memory module
3 securing clips
2 Slide and remove the memory module from the memory-module slot.
22
