3 Disconnect the hard-drive cable from the hard drive.

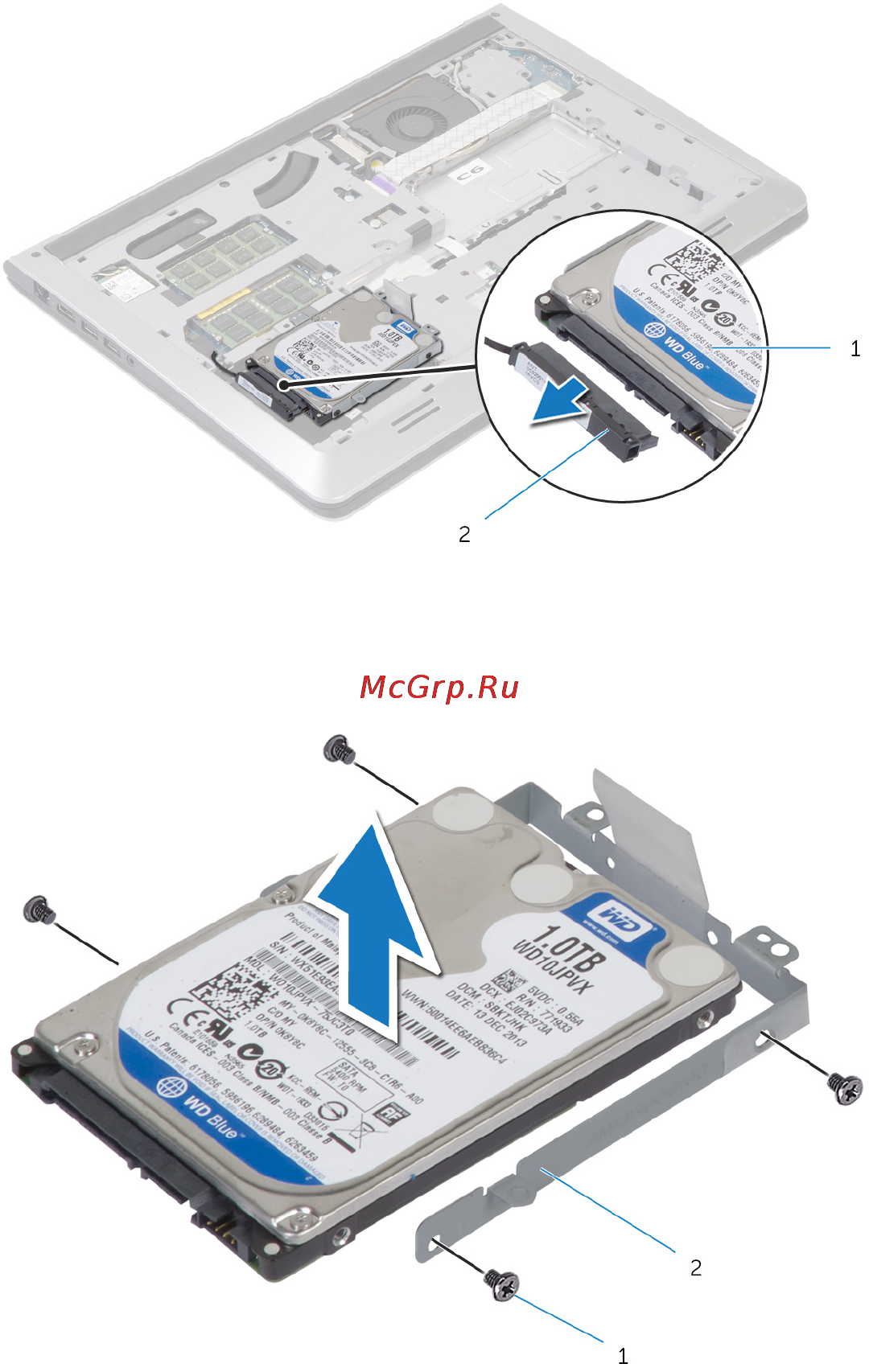

1 hard-drive assembly 2 hard-drive cable
4 Remove the screws that secure the hard-drive bracket to the hard drive.
5 Lift the hard drive off the hard-drive bracket .
1 screws (4) 2 hard-drive bracket
