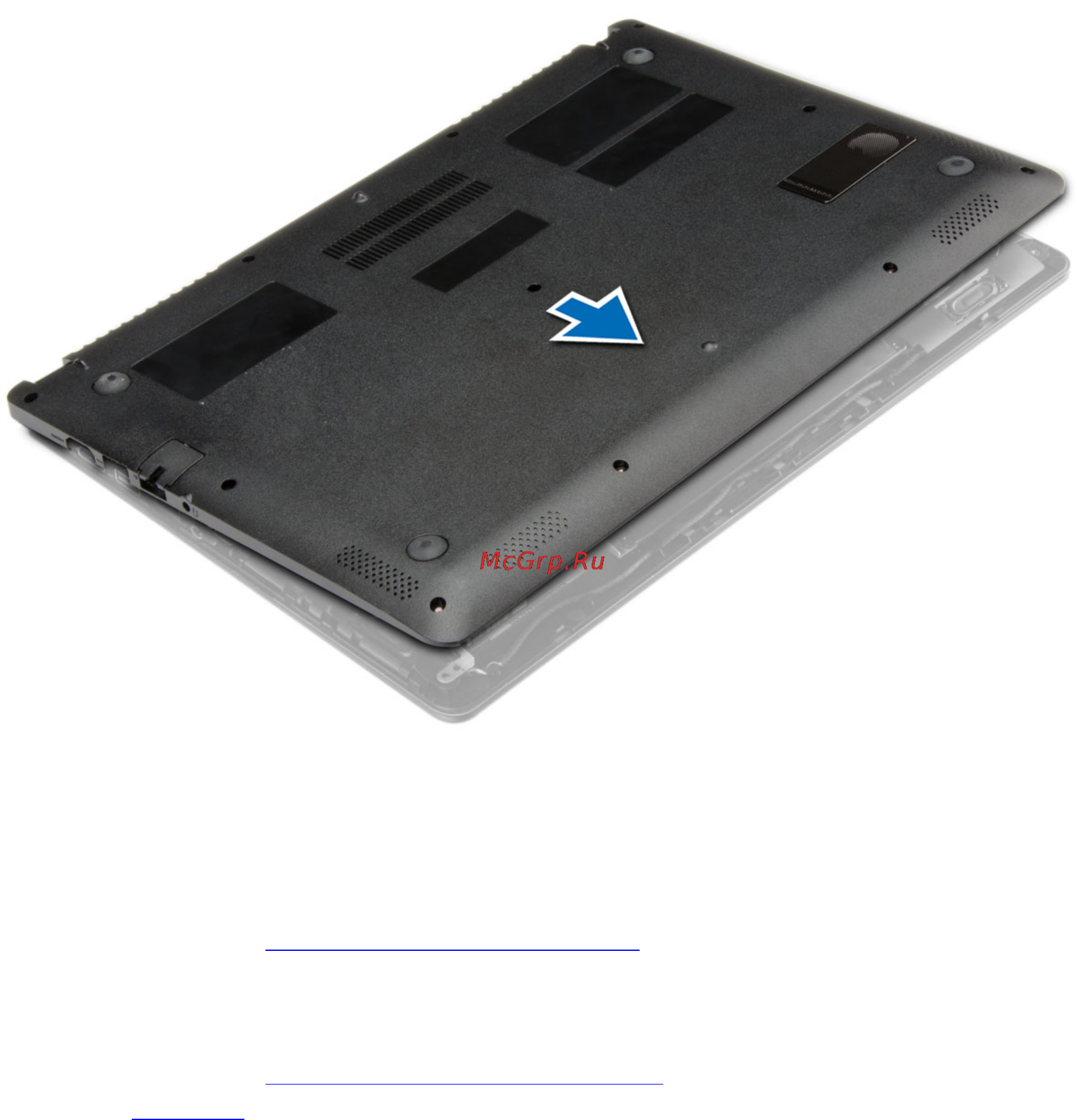

Installing the Base Cover
1. Place the base cover to align with the screw holes on the computer.
2. Tighten the screws to secure the base cover to the computer.
3. Follow the procedures in After Working Inside Your computer.
Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the base cover.
3. Disconnect the battery cable from its connector on the system board.
12
