Installing the Display Panel

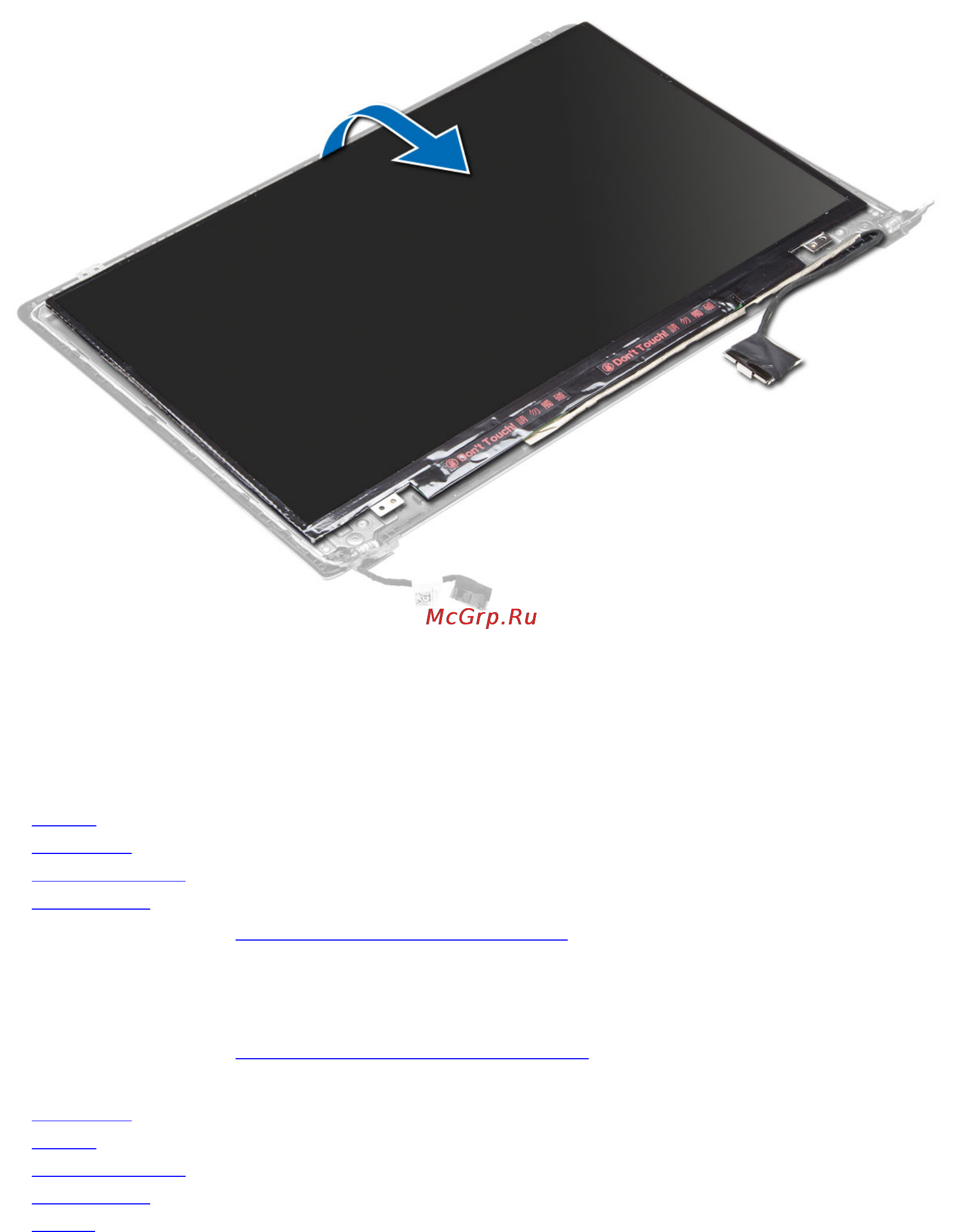

1. Align the display panel to the display assembly by pressing along the edges.
2. Install the screws that secure the display panel.
3. Install:
a. battery
b. base cover
c. display assembly
d. display bezel
4. Follow the procedures in After Working Inside Your computer.
Removing the Camera
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove :
a. base cover
b. battery
c. display assembly
d. display bezel
e. display
3. Disconnect the camera cable and lift the camera to remove it from the computer.
