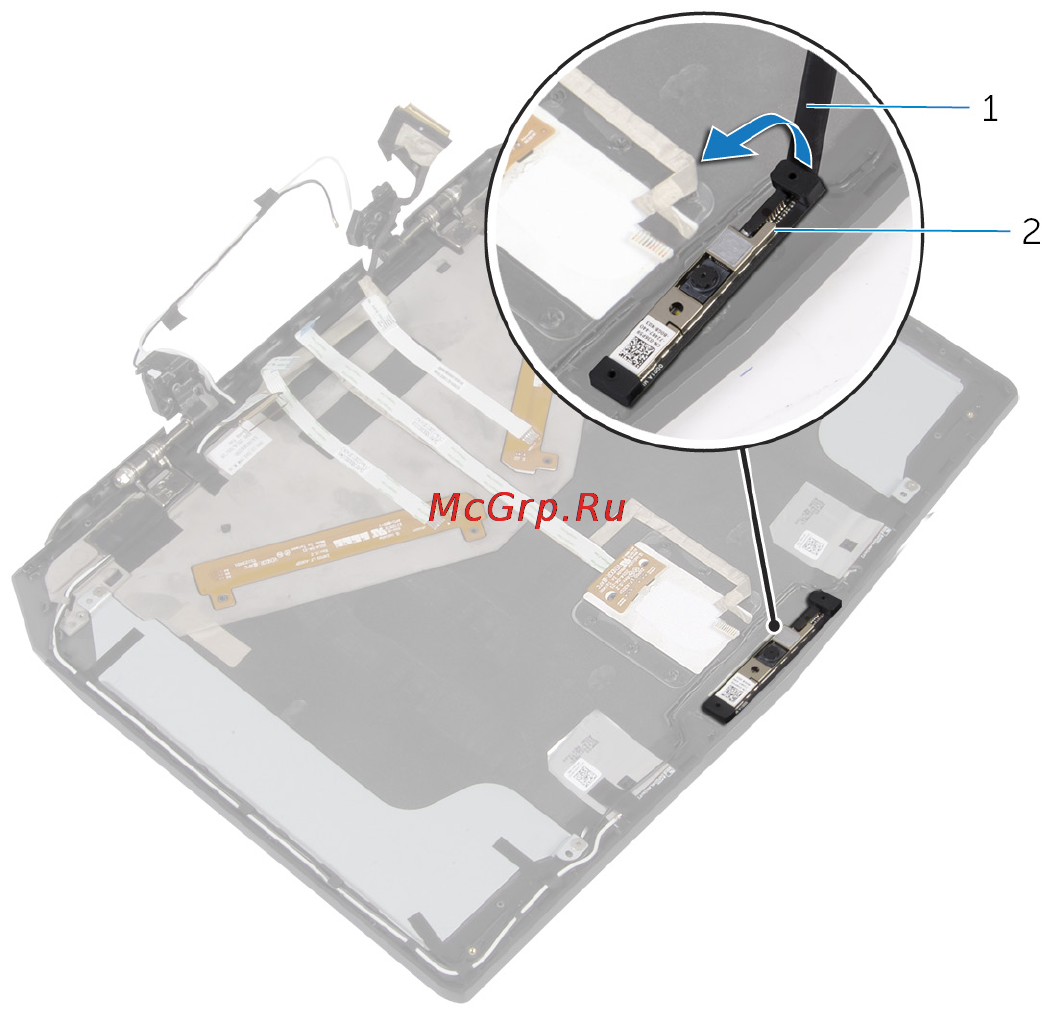

3 Using a plastic scribe, pry the camera module off the display back-cover.
1 plastic scribe 2 camera module
101
