Dell alienware 13, a13-6342 [21/119] Post requisites
![Dell alienware 13, a13-6359 [21/119] Post requisites](/views2/1166675/page21/bg15.png)

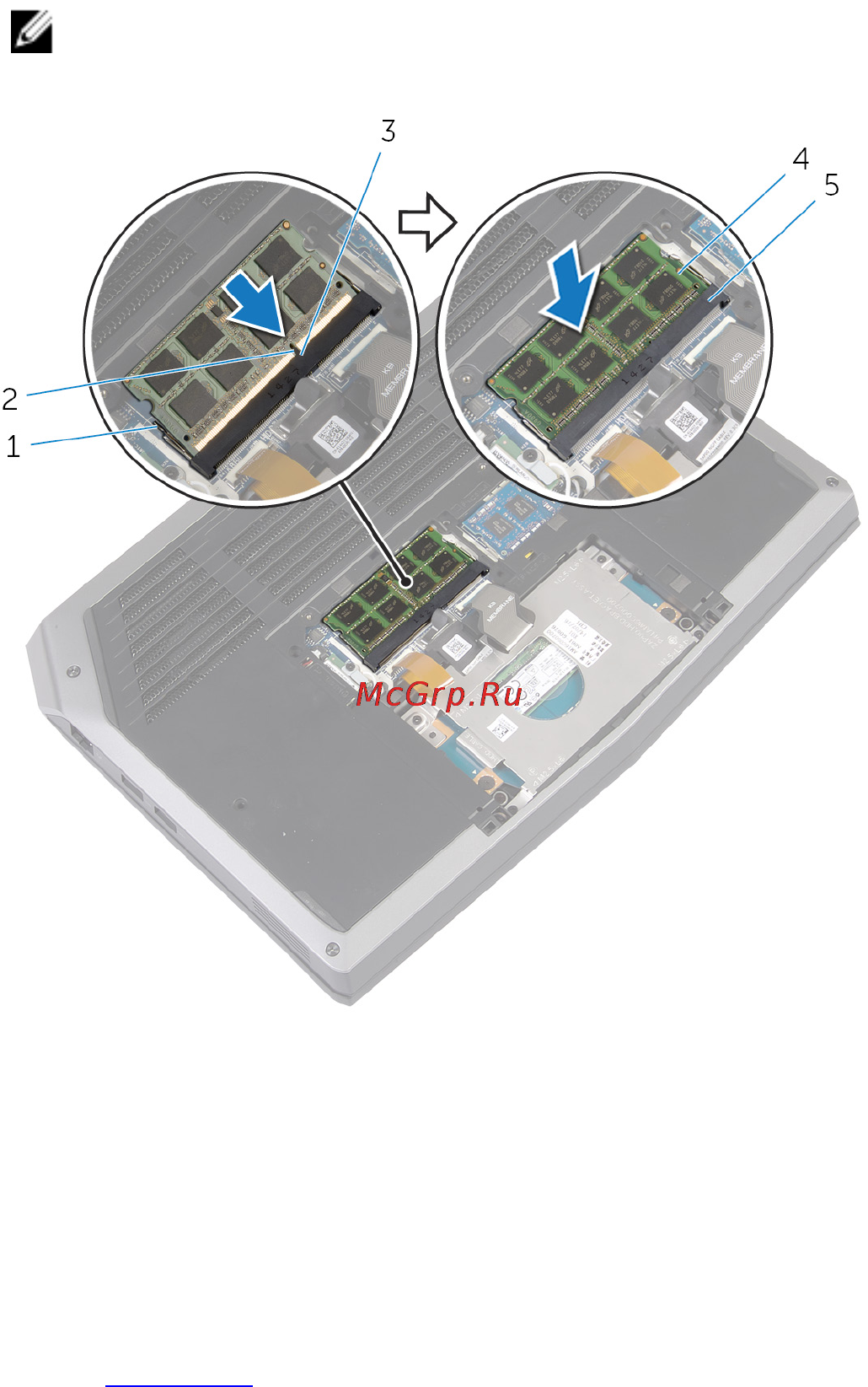

2 Slide the memory module firmly into the slot at an angle and press the
memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and
reinstall it.
1 securing clips (2) 2 notch
3 tab 4 memory module
5 memory-module slot
Post-requisites
Replace the base panel.
21
