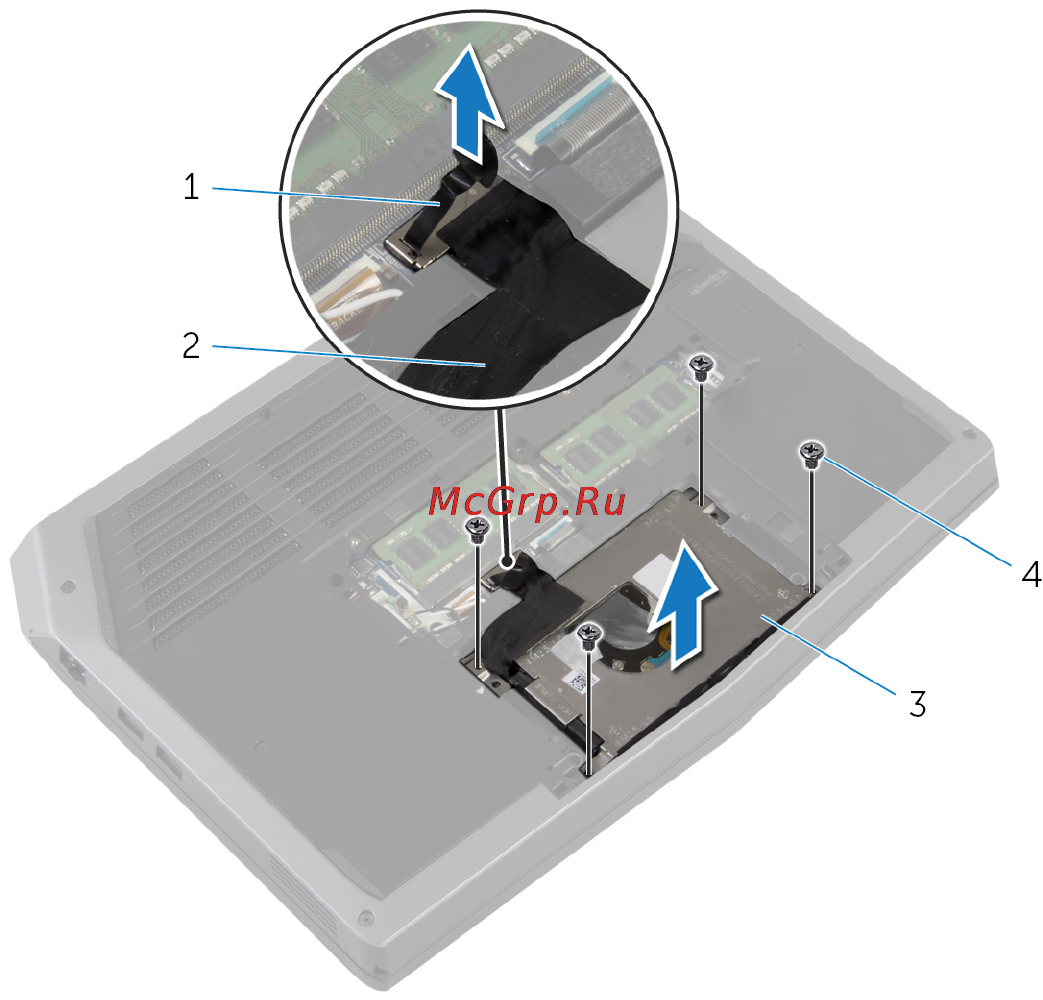

3 Lift the hard-drive assembly off the computer base.
1 pull tab 2 hard-drive cable
3 hard-drive assembly 4 screws (4)
4 Remove the screws that secure the hard-drive bracket to the hard drive.
28
