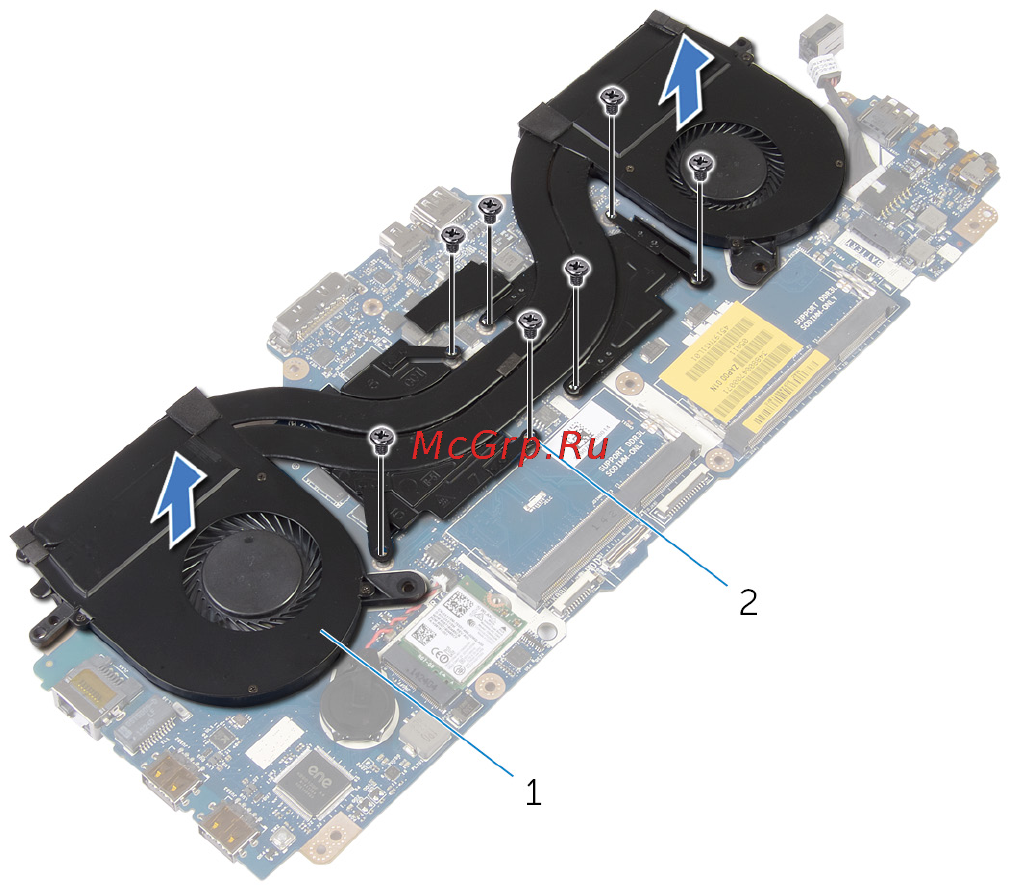

3 Remove the screws that secure the heat-sink assembly to the system
board.
1 heat-sink assembly 2 screws (7)
4 Lift the heat-sink assembly off the system board.
70
