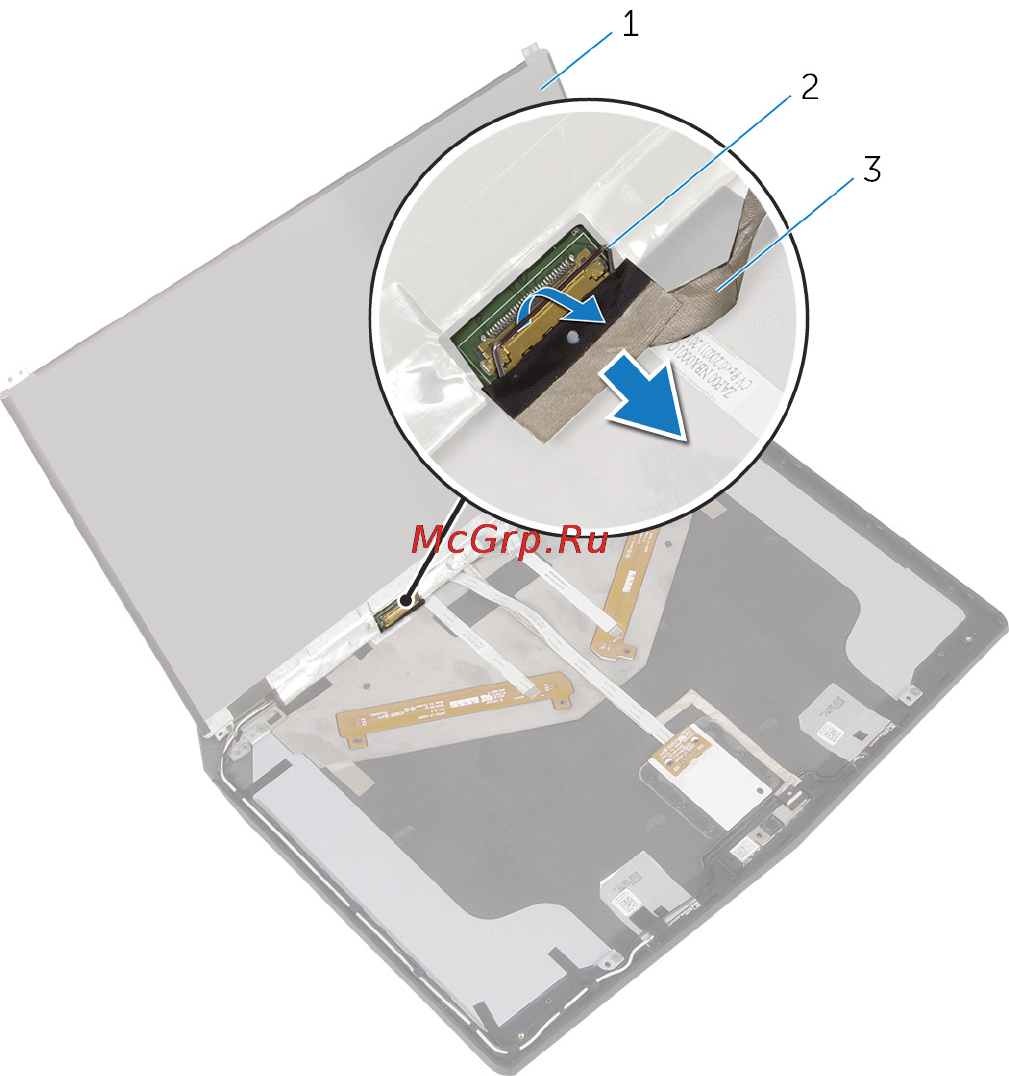

3 Lift the connector latch and disconnect the display cable from the display
panel.
1 display panel 2 connector latch
3 display cable
97
