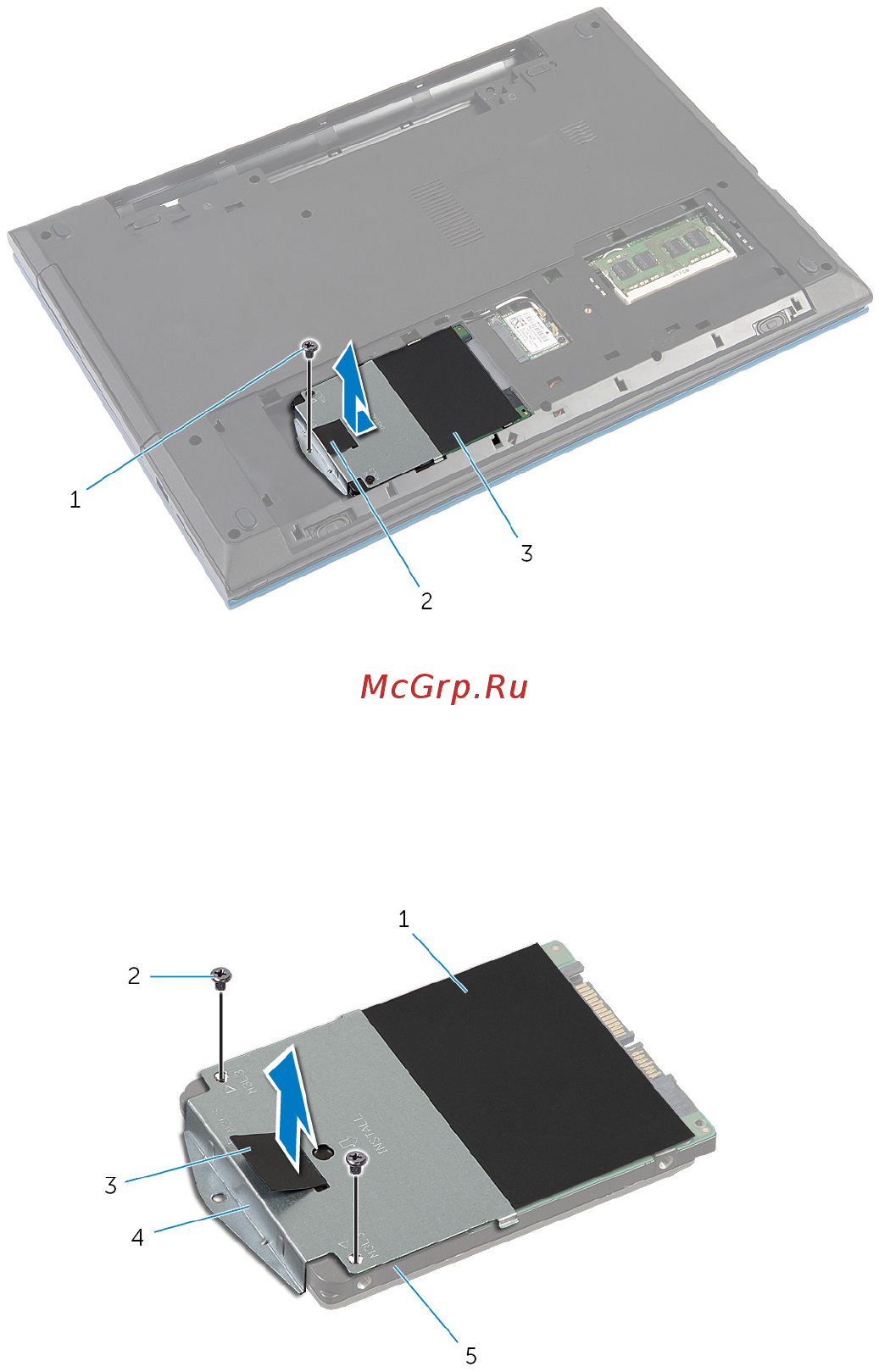

3 Lift the hard-drive assembly out of the computer base.
1 screw 2 pull tab
3 hard-drive assembly
4 Remove the screws that secure the hard-drive bracket to the hard drive.
5 Using the pull tab, lift the hard-drive bracket and peel the Mylar sheet off
the hard drive.
1 Mylar sheet 2 screws (2)
3 pull tab 4 hard-drive bracket
5 hard drive
21
