Dell inspiron 3542, 3542-7791 [24/97] Procedure
![Dell inspiron 3541, 3541-8529 [24/97] Procedure](/views2/1166433/page24/bg18.png)

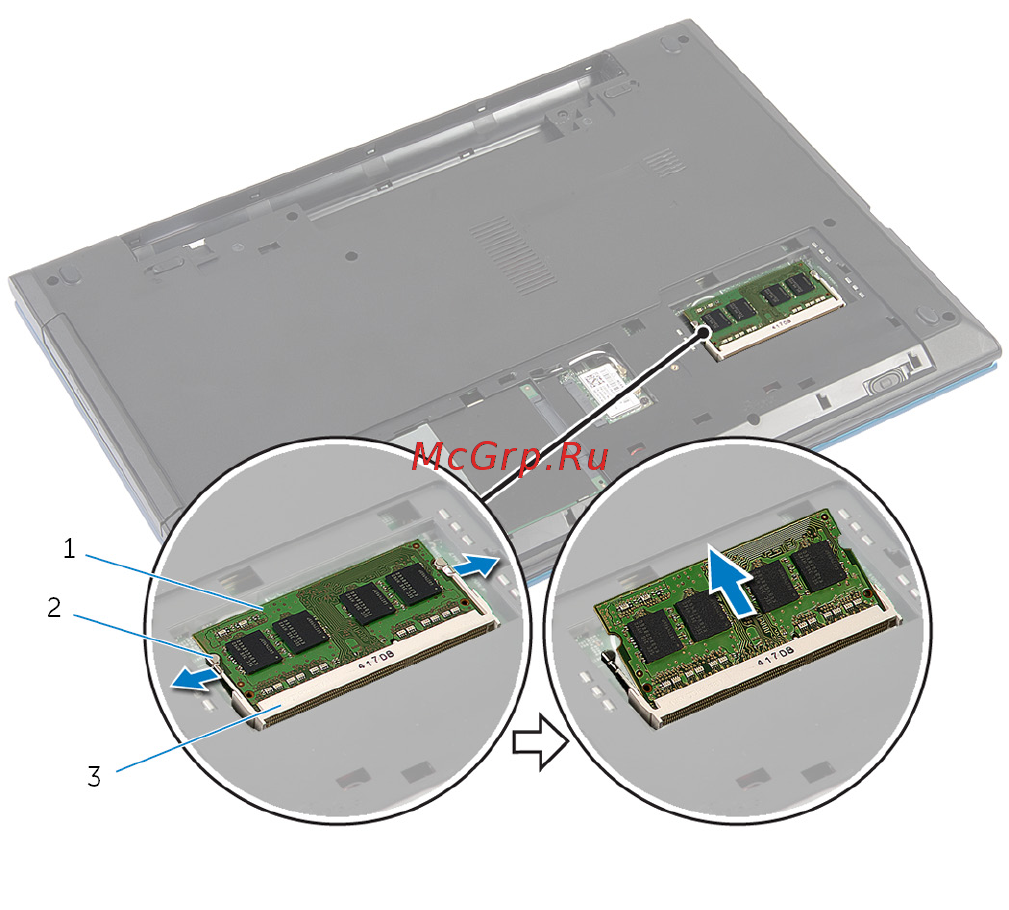

Procedure
1 Using your fingertips, pry apart the securing clips on each end of the
memory-module slot until the memory module pops up.
2 Slide and remove the memory module from the memory-module slot.
1 memory module 2 securing clips (2)
3 memory-module slot
24
