Procedure

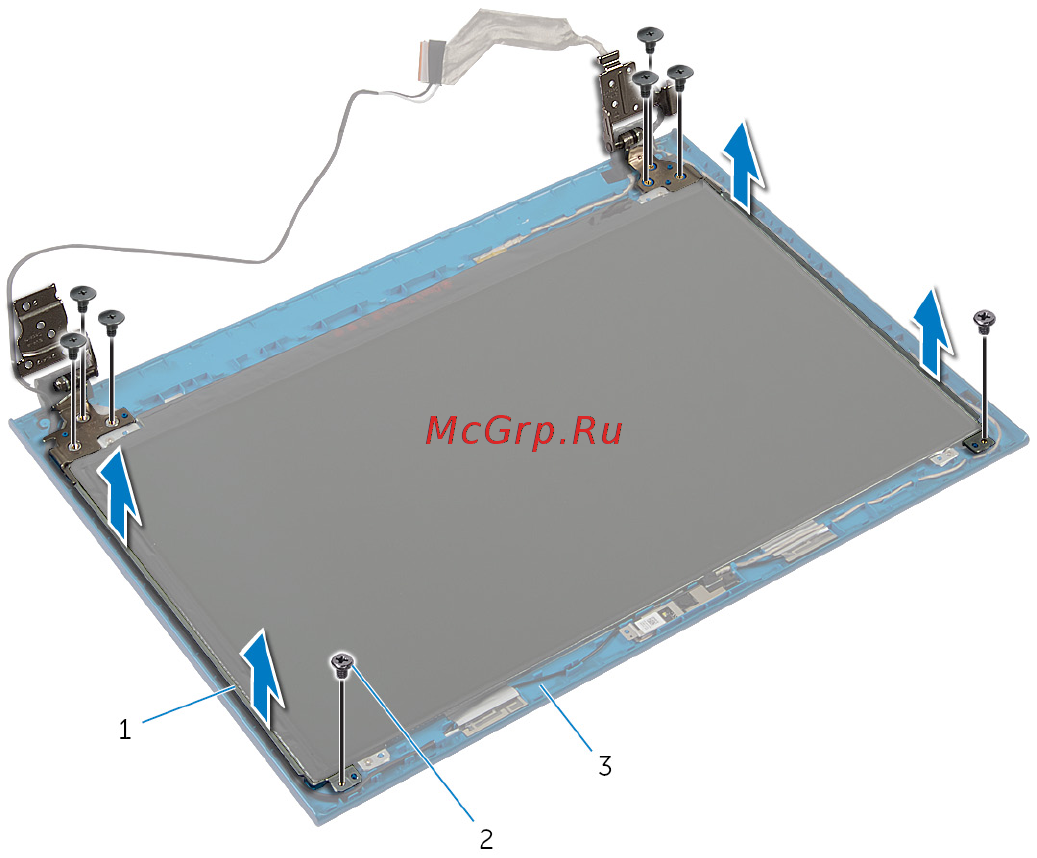

1 Remove the screws that secure the display hinges to the display back-
cover.
2 Lift the display hinges off the display back-cover.
1 display hinges (2) 2 screws (8)
3 display back-cover
90
