3 Carefully turn the keyboard over and place it on the palm rest.

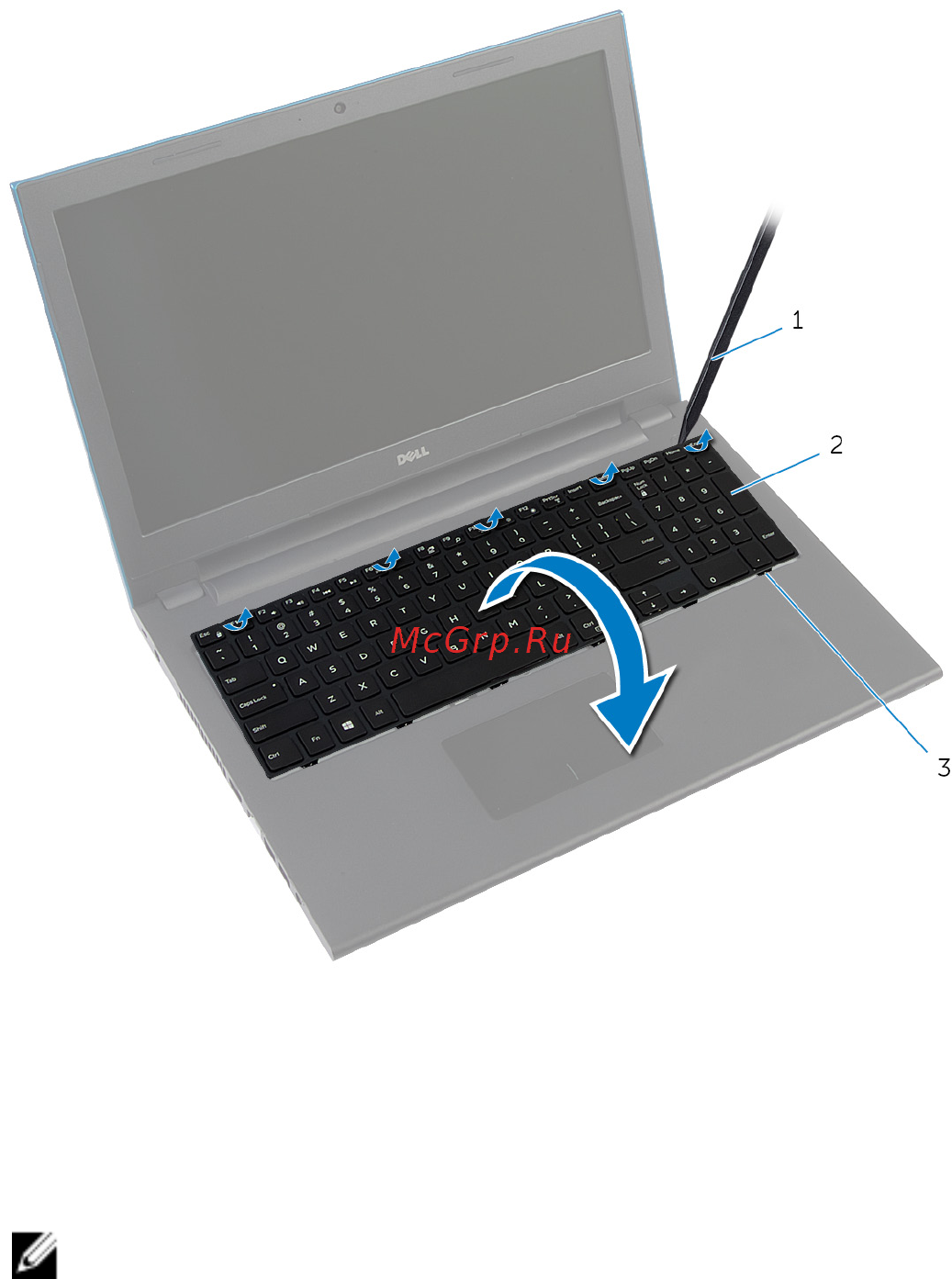

1 plastic scribe 2 keyboard
3 tabs (6)
4 Lift the connector latches and disconnect the keyboard cable and
keyboard-backlight cable (optional) from the system board.
NOTE: Keyboard-backlight cable is present only on a backlit-
keyboard.
31
