![Dell inspiron 3542, 3542-9460 Инструкция по эксплуатации онлайн [46/97] 152266](/views2/1166433/page46/bg2e.png)

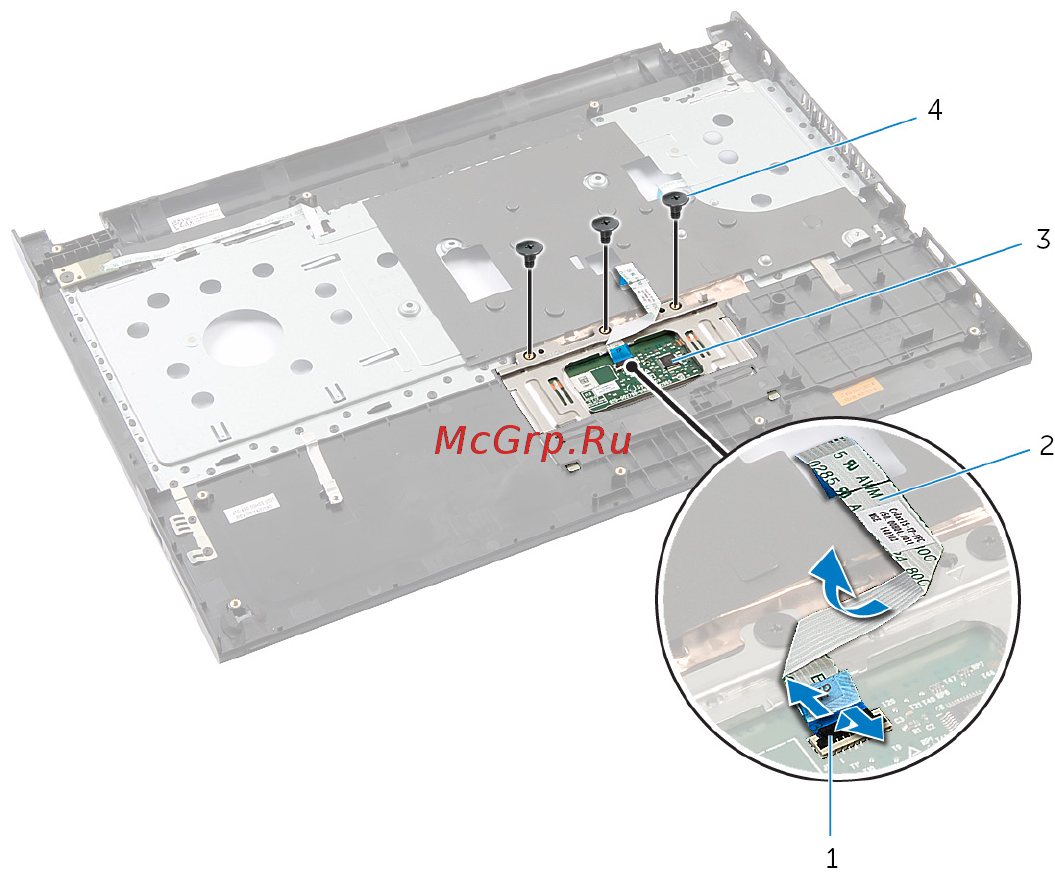

3 Remove the screws that secure the touchpad to the palm rest.
1 connector latch 2 touchpad cable
3 touchpad 4 screws (3)
4 Using your fingertips, release the touchpad from under the palm rest.
46
