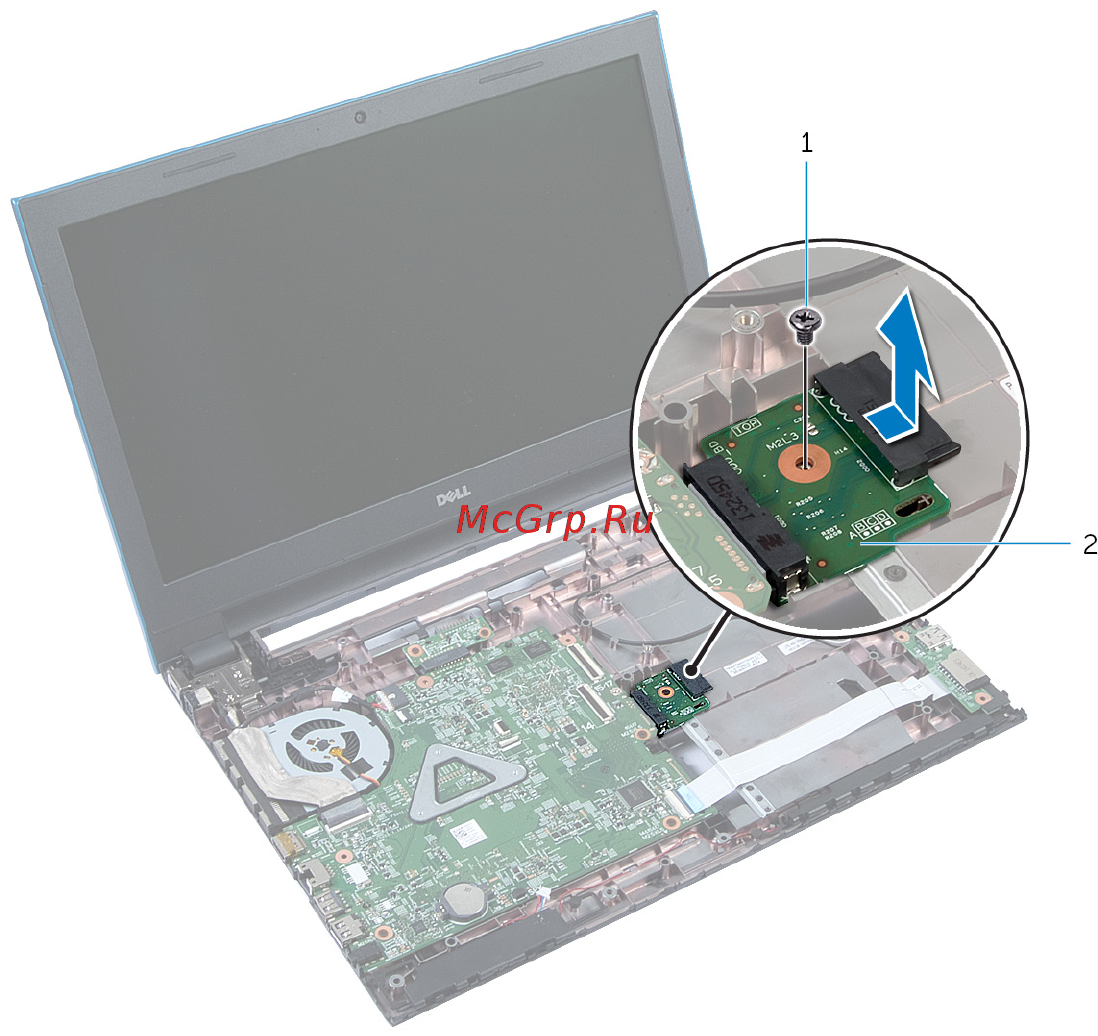

7 Lift the optical-drive connector board off the computer base.
1 screw 2 optical-drive connector
board
57
