Dell inspiron 3542, 3542-7791 Инструкция по эксплуатации онлайн [93/97] 152463
![Dell inspiron 3542, 3542-9439 Инструкция по эксплуатации онлайн [93/97] 152260](/views2/1166433/page93/bg5d.png)

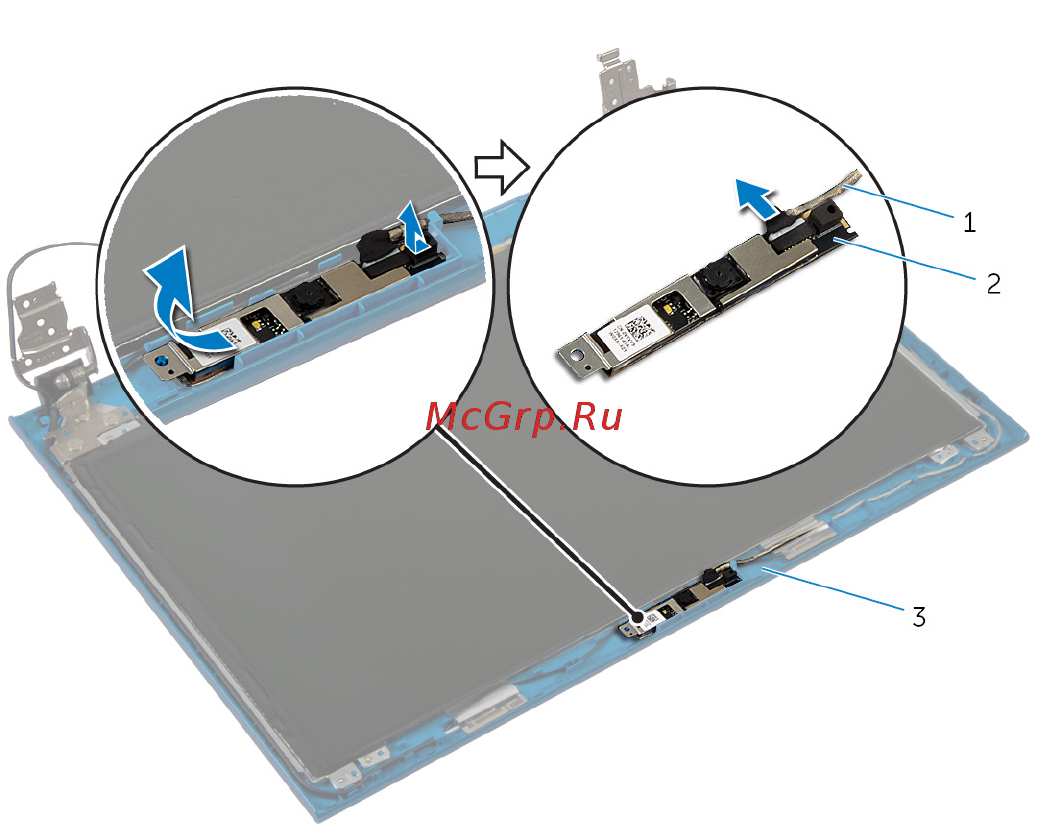

3 Disconnect the camera cable from the camera module.
1 camera cable 2 camera module
3 display back-cover
93
