- 28 -
(AHCI) is an interface specication that allows the storage driver to enable advanced
Serial ATA features such as Native Command Queuing and hot plug. (Default)
` Serial ATA Port 0/1/2/3/4/5
& Port 0/1/2/3/4/5
Enables or disables each SATA port. (Default: Enabled)
& Hot plug
Enables or disable the hot plug capability for each SATA port. (Default: Disabled)
& External SATA
Enables or disables support for external SATA devices. (Default: Disabled)
` SuperIOConguration
This section provides information on the super I/O chip and allows you to congure the serial port.
& Serial Port A
Enables or disables the onboard serial port. (Default: Enabled)
` Intel(R) Smart Connect Technology
& ISCTConguration
Enables or disables Intel
®
Smart Connect Technology. (Default: Disabled)
` Realtek PCIe GBE Family Controller
This sub-menu provides information on LAN conguration.

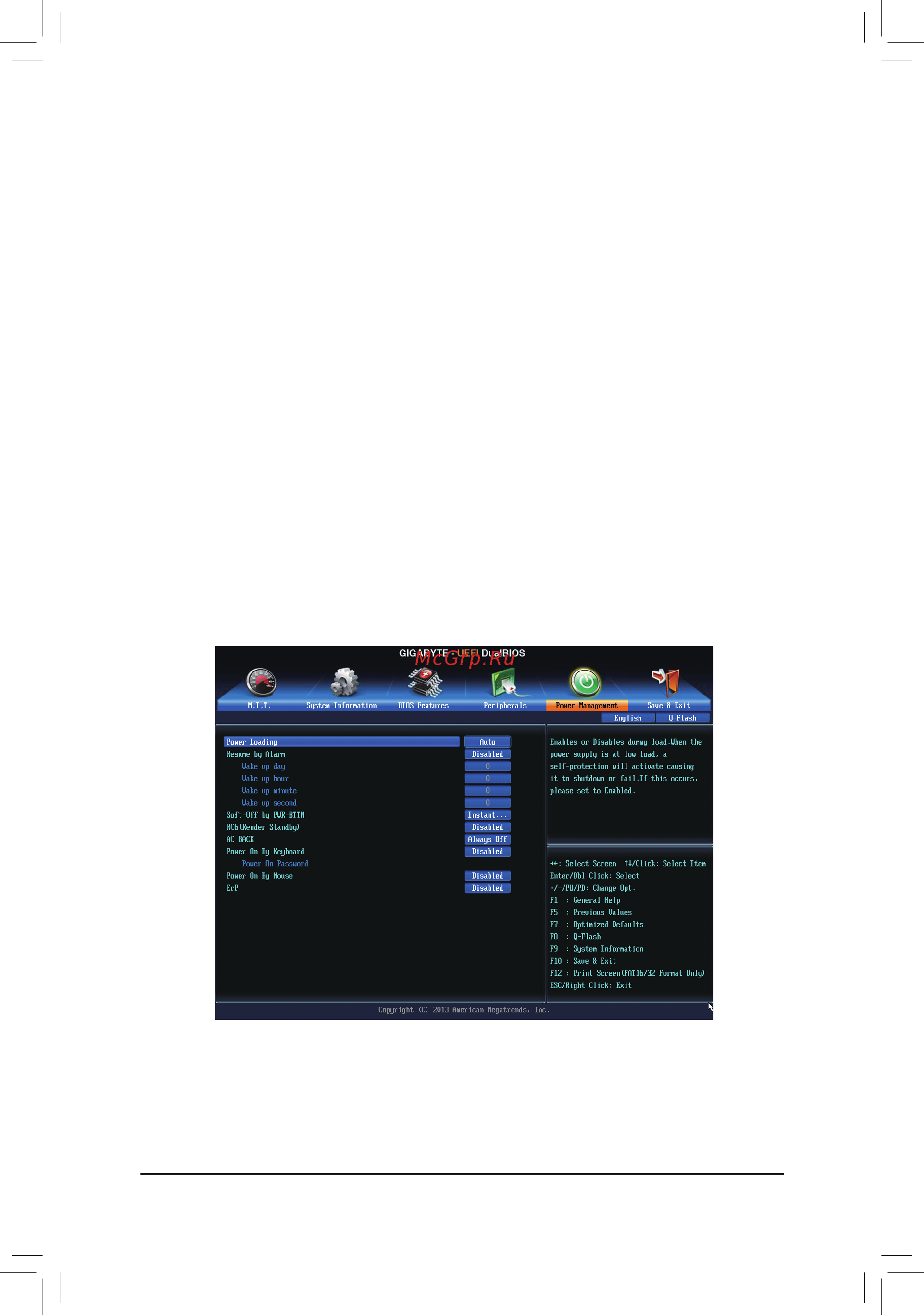

2-6 Power Management
& Power Loading
Enables or disables dummy load. When the power supply is at low load, a self-protection will activate caus-
ing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically congure
this setting. (Default: Auto)
