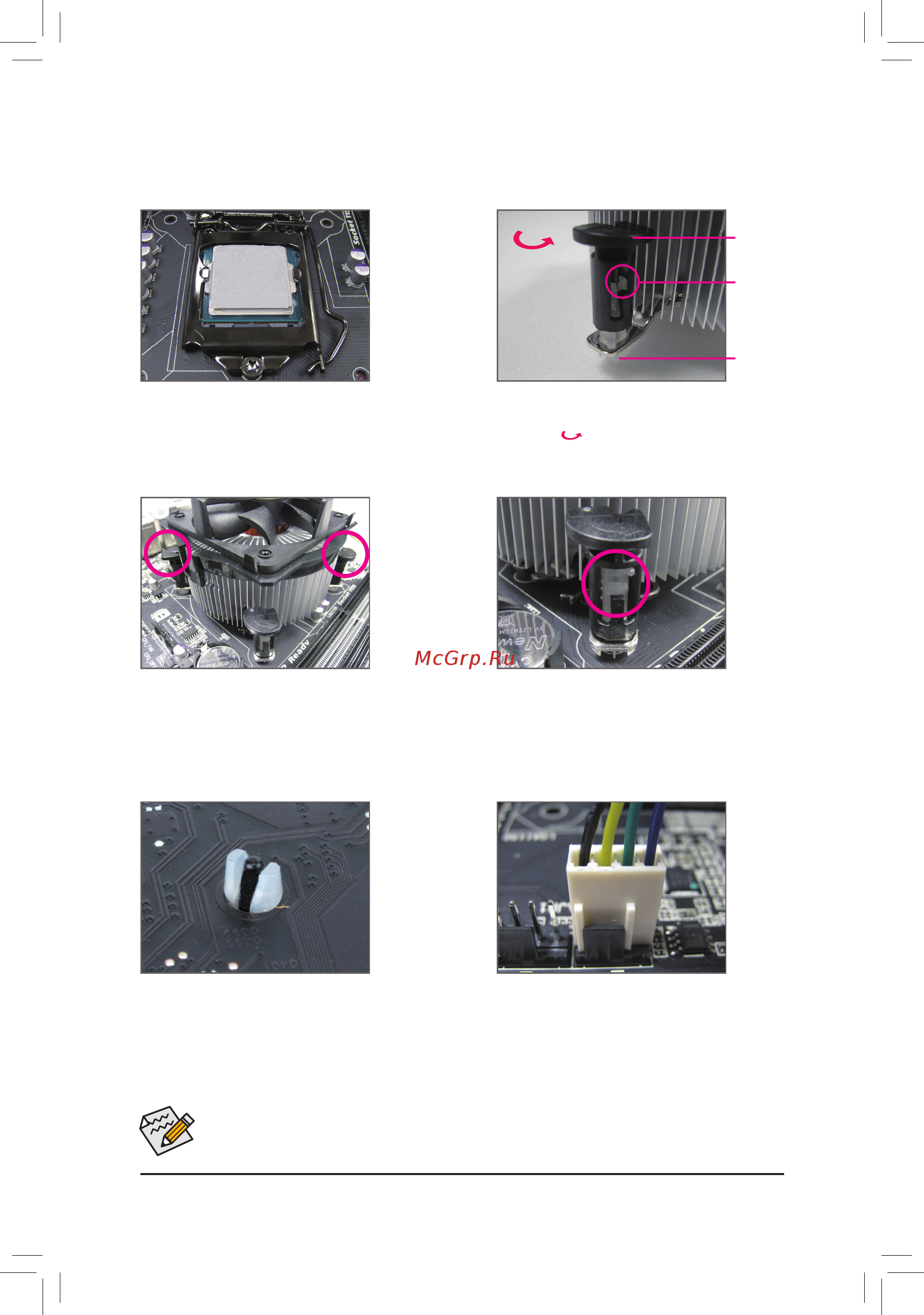

1-3-2 Installing the CPU Cooler

FollowthestepsbelowtocorrectlyinstalltheCPUcooleronthemotherboard.(Thefollowingprocedureuses

Intel

®

boxedcoolerastheexamplecooler.)

Use extreme care when removing the CPU cooler because the thermal grease/tape between the CPU

cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

the surface of the installed CPU.

arrow sign onthemalepushpin.(Turningthe

push pin along the direction of arrow is to remove

thecooler,onthecontrary,istoinstall.)

Step 3:

Place the cooler atop the CPU, aligning the

four push pins through the pin holes on the

motherboard. Push down on the push pins

diagonally.

Step 4:

You should hear a "click" when pushing down each

push pin. Check that the Male and Female push

pins are joined closely.

(RefertoyourCPUcoolerinstallationmanualfor

instructionsoninstallingthecooler.)

Male
