- 5 -

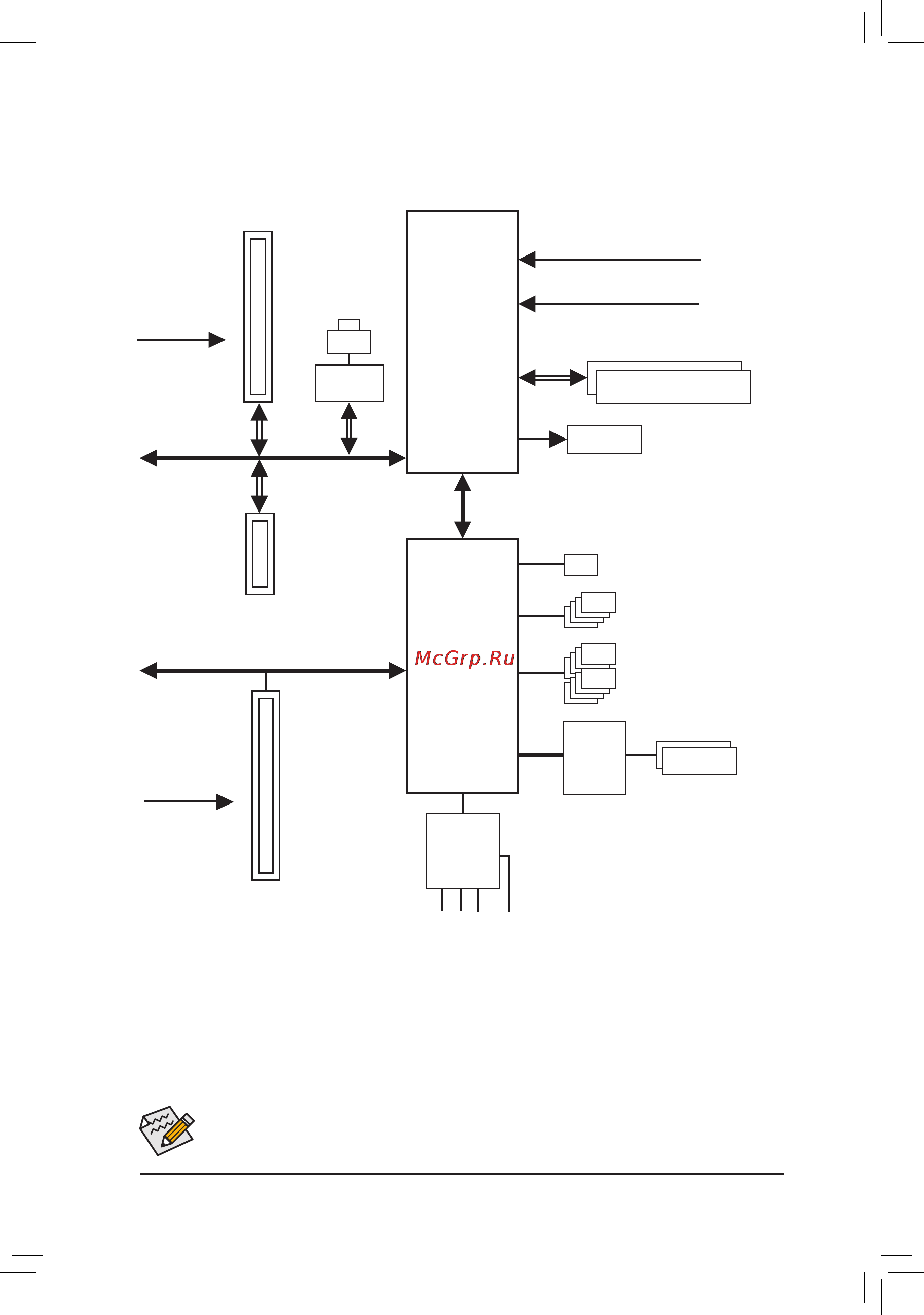

GA-F2A58M-S1 Motherboard Block Diagram

For detailed product information/limitation(s), refer to "1-2 Product Specications."

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

S/PDIF Out

AMD APU

UMI

APU CLK+/- (100 MHz)

Dual Channel Memory

PCI Express Bus

PCI Bus

LPC

Bus

PCIe CLK

(100 MHz)

PS/2 KB/Mouse

8 USB 2.0/1.1

LAN

RJ45

x16

Realtek

GbE LAN

1 PCI Express x16

1 PCI Express x1

4 SATA 3Gb/s

AMD A58

DISP CLK+/- (100 MHz)

DDR3 2133/1866/

1600/1333 MHz

D-Sub

iTE

Super I/O

BIOS

1 PCI

PCI CLK

(33 MHz)
