Gigabyte ga-h110m-hd3 ddr3 [33/40] Audio controller
![Gigabyte ga-h110m-hd3 ddr3 [33/40] Audio controller](/views2/1167906/page33/bg21.png)
& VT-d
(Note)
Enables or disables Intel
®
Virtualization Technology for Directed I/O. (Default: Disabled)
& Internal Graphics
Enables or disables the onboard graphics function. (Default: Auto)
& Audio Controller
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& PCH LAN Controller
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Wake on LAN
Enables or disables the wake on LAN function. (Default: Enabled)
& High Precision Timer
Enables or disables High Precision Event Timer (HPET) in the operating system. (Default: Enabled)

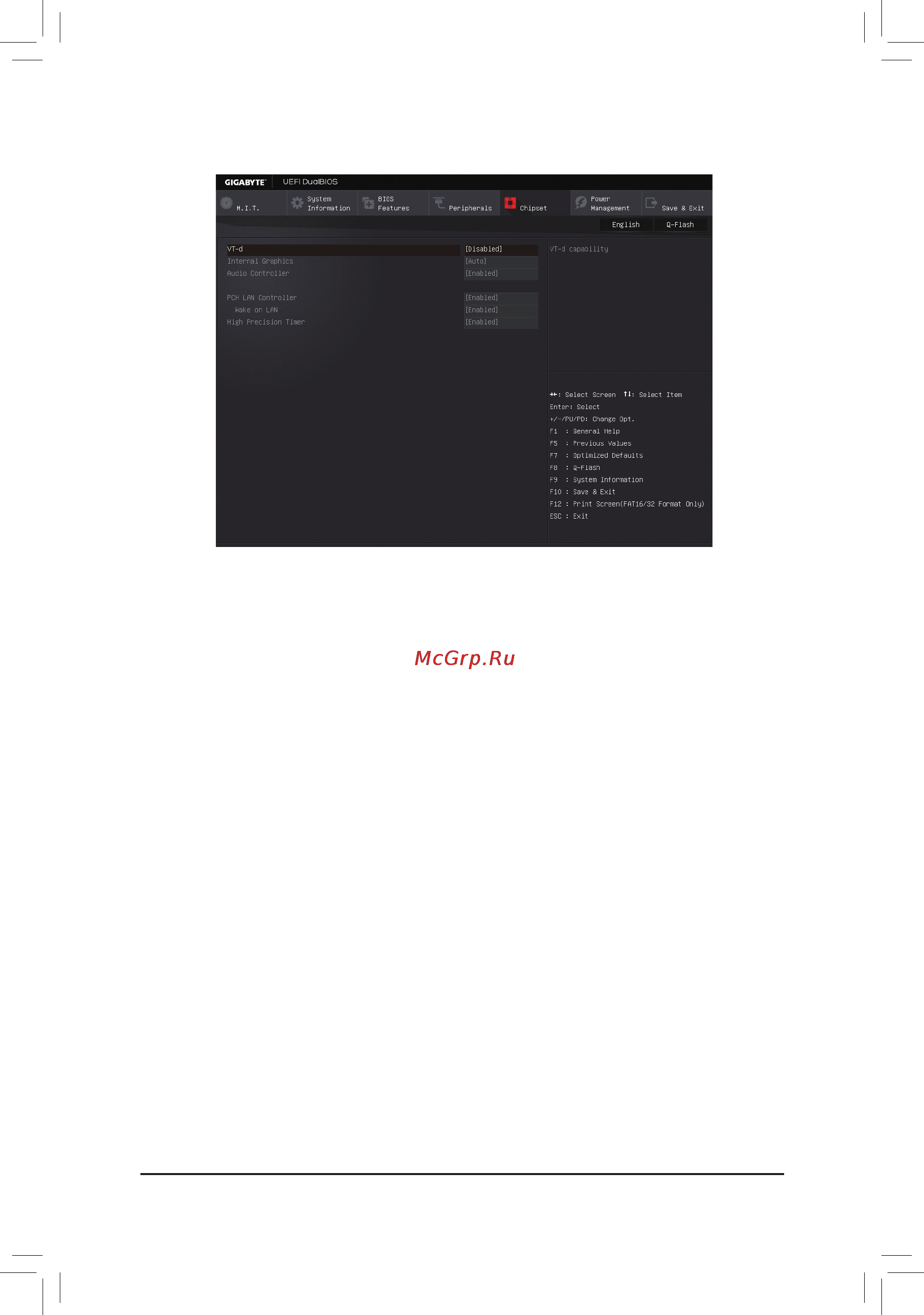

2-6 Chipset
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 33 -
