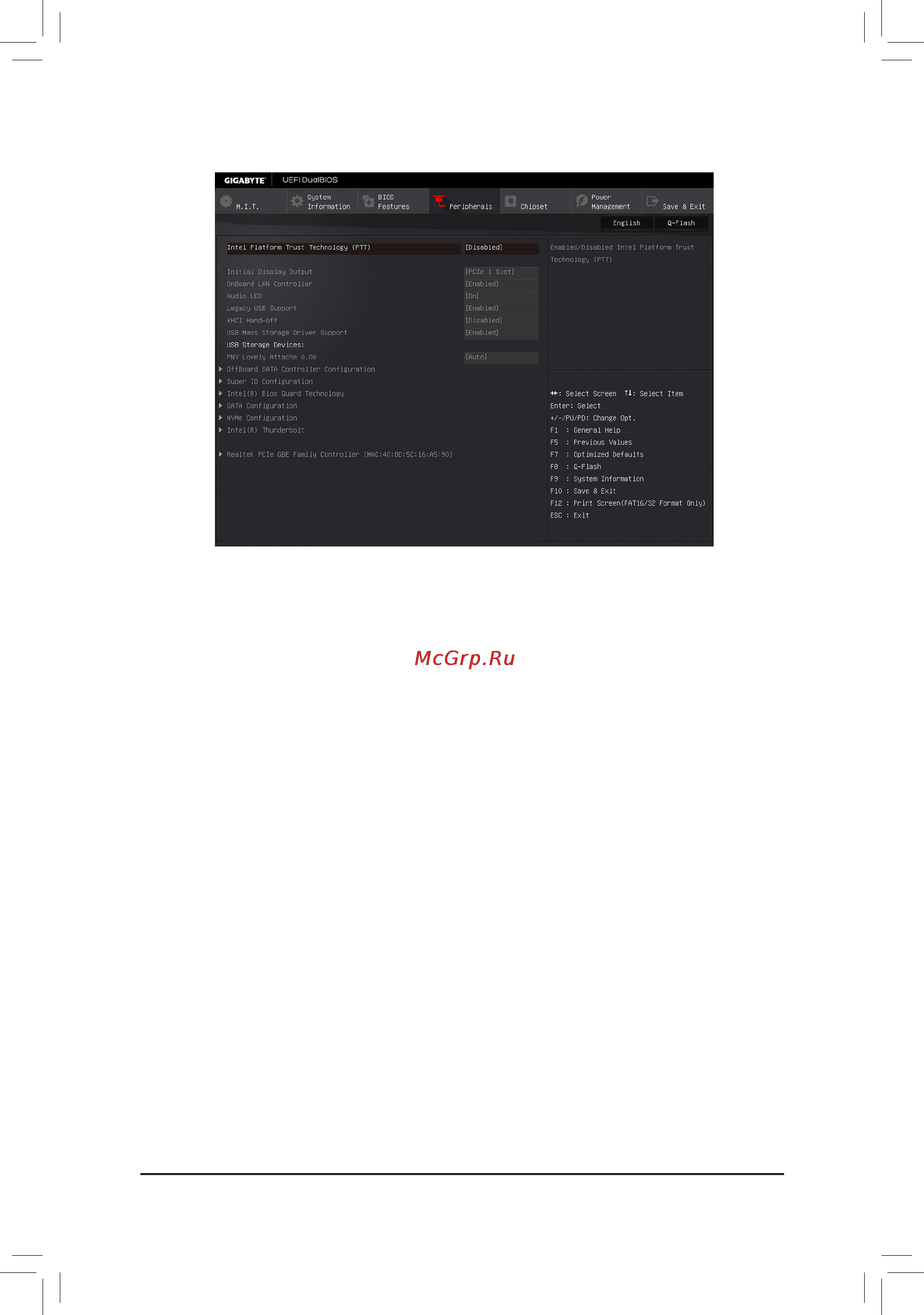

2-5 Peripherals
& Intel Platform Trust Technology (PTT)
Enables or disables Intel
®
PTT Technology. (Default: Disabled)
& Initial Display Output
SpeciestherstinitiationofthemonitordisplayfromtheinstalledPCIExpressgraphicscardortheonboard
graphics.
IGFX Setstheonboardgraphicsastherstdisplay.
PCIe1Slot SetsthegraphicscardonthePCIEX16slotastherstdisplay.(Default)
& Audio LED
Enables or disables the onboard audio LED. (Default: On)
& Legacy USB Support
Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled)
& XHCI Hand-off
Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off
support. (Default: Disabled)
& USB Mass Storage Driver Support
Enables or disables support for USB storage devices. (Default: Enabled)
& USB Storage Devices
Displays a list of connected USB mass storage devices. This item appears only when a USB storage device
is installed.
` OffBoardSATAControllerConguration
Displays information on your PCIe SSD if installed.
` SuperIOConguration
& Serial Port 1/Serial Port 2
Enables or disables the onboard serial port. (Default: Enabled)
& Parallel Port
Enables or disables the onboard parallel port. (Default: Enabled)
- 29 -
