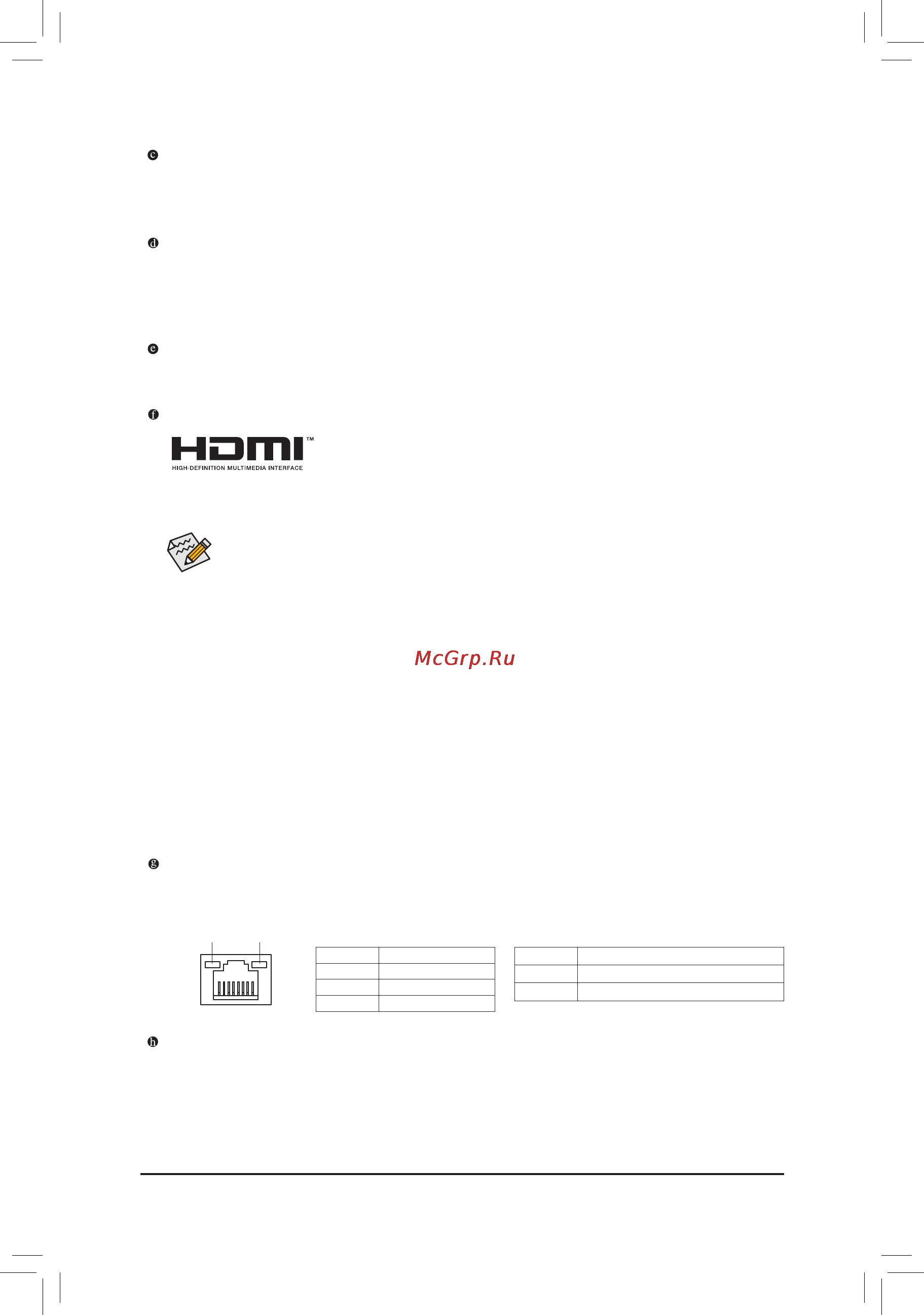

- 11 -
Activity LED
Connection/
Speed LED
LAN Port
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
A.TripleDisplayCongurations:
Triple-display congurations are supported after you install motherboard drivers in OS. Only dual-display
congurations are supported during the BIOS Setup or POST process.
B. Playback of Blu-ray
™
Discs:
In order to get better playback quality, when playing the Blu-ray
™
discs, refer to the recommended system
requirements (or better) below.
• AMD A series processors
• Memory: At least two 1 GB DDR3 1333 MHz memory modules with dual channel mode enabled
• BIOS Setup: At least 512 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup," "Peripherals\
GFX Conguration," for more information)
• Playback software: CyberLink PowerDVD 10.0 or later (Note: Please ensure Hardware Acceleration
is enabled. Whether Hardware Acceleration can be enabled for 3D Blu-ray discs is dependent on the
APU being used.)
• HDCP compliant monitor(s)
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
D-Sub connection to this port.
DVI-D Port
(Note 1)
The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 2560x1600.
Connect a monitor that supports DVI-D connection to this port. Please note that the actual resolutions
supported are dependent on the monitor being used and support for 2560x1600 resolution requires both
a monitor and cable that support Dual Link DVI.
USB 3.0/2.0 Port
The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.
Use this port for USB devices.
HDMI Port
The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD
Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio
output. You can use this port to connect your HDMI-supported monitor. The
maximum supported resolution is 4096x2160
(Note 2)
, but the actual resolutions supported are dependent on
the monitor being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI.
USB 3.1 Type-A Port (Red)
The USB 3.1 port supports the USB 3.1 specication and is compatible to the USB 3.0/ 2.0/1.1 specication.
Use this port for USB devices.
(Note 1) The DVI-D port does not support D-Sub connection by adapter.
(Note 2) The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution
supported is 1920x1200 when using an FM2 APU.
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
