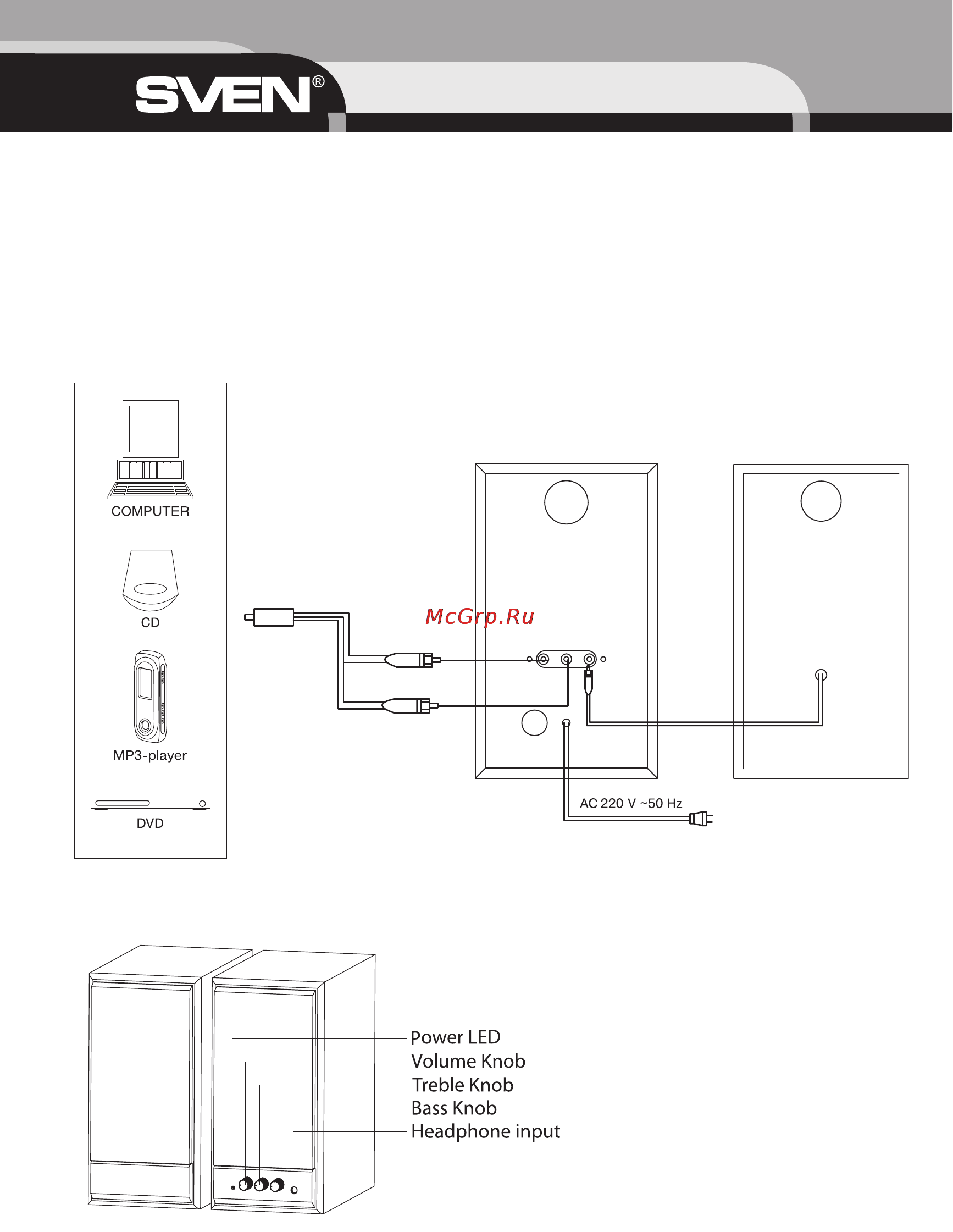

5. INSTALLATION AND OPERATION GUIDE
1). Before connecting be sure that all components are switched off.
2). Connect speakers with the link cable.
3). Insert mini-jack of the signal cable into the output of the PC soundcard, CD one and so on. Then connect two signal cable plugs with
master speaker output (match the colours).
4). Plug connector to power socket.
5). Adjust the volume knobs to the minimum; press the power button on the back panel of the master speaker.
6). Adjust the volume knob to the necessary volume.
7). Adjust TREBLE and BASS knobs to desired level.
8). Use the soundcard Line-out port to improve sound quality.
10
