Chapter 34 Link Layer Discovery Protocol (LLDP)
XS1920 Series User’s Guide
275
34.5.1 LLDP Remote Port Status Detail
This screen displays detailed LLDP status received from remote device. Click Advanced
Application > LLDP > LLDP Remote Status (Click Here) and then click an index number, for
example 1, in the Index column in the LLDP Remote Status screen to display the screen as shown
next.

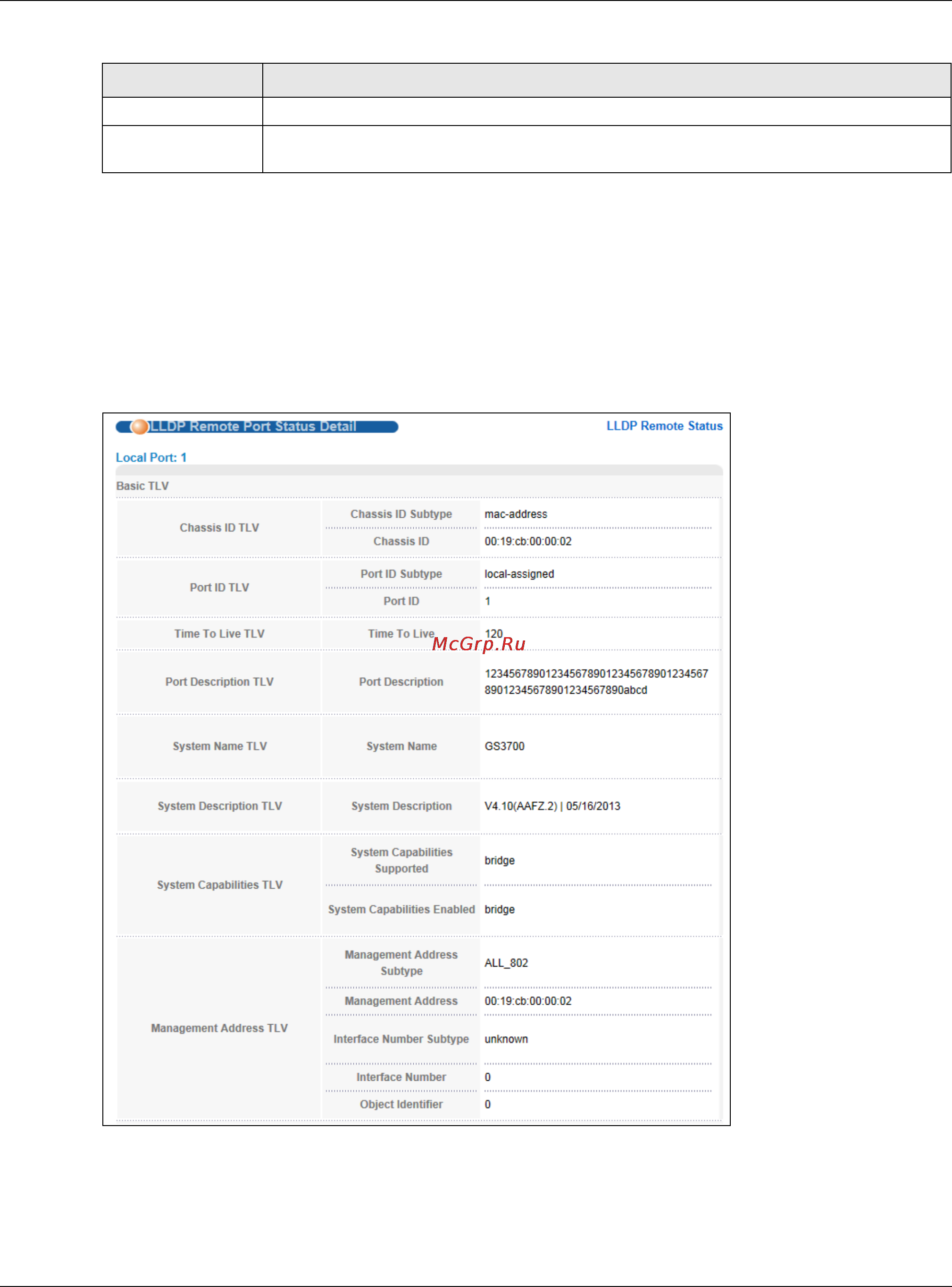

Figure 194 Advanced Application > LLDP > LLDP Remote Status > LLDP Remote Port Status Detail
(Basic TLV)
System Name This displays the system name of the remote device.
Management
Address
This displays the management address of the remote device. It could be the MAC
address or IP address. You can click on the IP address hyperlink directly.
Table 134 Advanced Application > LLDP > LLDP Remote Status
LABEL DESCRIPTION
