Chapter 39 Maintenance
XS1920 Series User’s Guide
319
39.2.1 Firmware Upgrade
Use the following screen to upgrade your Switch to the latest firmware. The Switch supports dual
firmware images, Firmware 1 and Firmware 2. Use this screen to specify which image is updated
when firmware is uploaded using the web configurator and to specify which image is loaded when
the Switch starts up.
Make sure you have downloaded (and unzipped) the correct model firmware and version to your
computer before uploading to the device.
Be sure to upload the correct model firmware as uploading the wrong
model firmware may damage your device.
Click Management > Maintenance > Firmware Upgrade to view the screen as shown next.

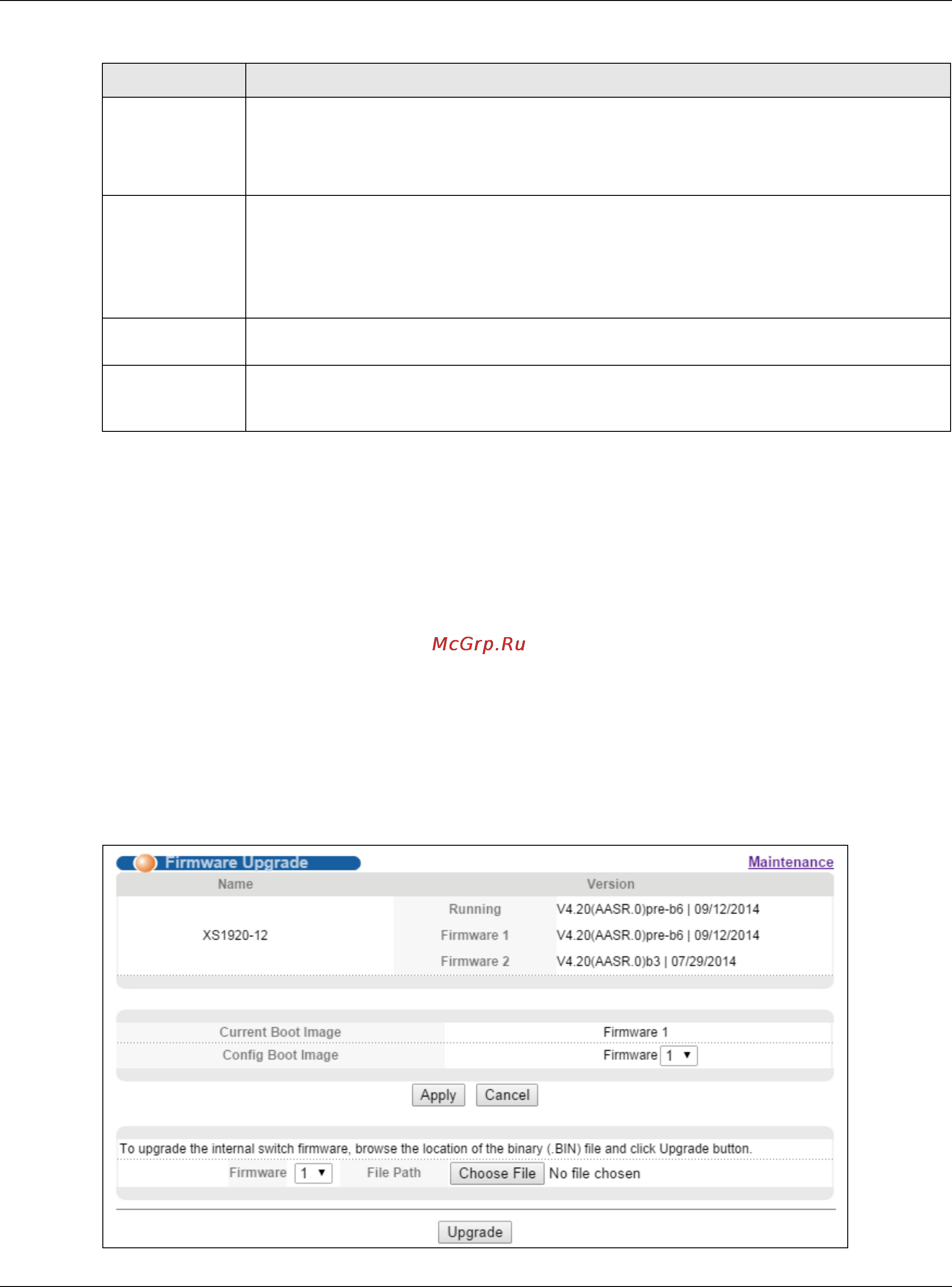

Figure 227 Management > Maintenance > Firmware Upgrade
Save
Configuration
Click Config 1 to save the current configuration settings to Configuration 1 on the
Switch.
Click Config 2 to save the current configuration settings to Configuration 2 on the
Switch.
Reboot System Click Config 1 to reboot the system and load Configuration 1 on the Switch.
Click Config 2 to reboot the system and load Configuration 2 on the Switch.
Note: Make sure to click the Save button in any screen to save your settings to the current
configuration on the Switch.
Factory Default Click this to reset the Switch IP address, admin username and password, and other
configuration settings back to the factory defaults.
Tech Support Click Click Here to see the Tech-Support screen. You can set CPU and memory thresholds
for log reports and download related log reports for issue analysis. Log reports include CPU
history and utilization, crash and memory.
Table 162 Management > Maintenance (continued)
LABEL DESCRIPTION
