NWA5301-NJ

802.11 b/g/n Wall-Plate Unied Access Point

Superb mobile-optimized RF performance

The NWA5301-NJ adopts 802.11n technology to provide bandwidths of up to 300 Mbps. The implemented premium 11n features, including maximum

likelihood, allows the NWA5301-NJ to eliminate dead spots in its coverage for the best network eciency. In hotel environments today, most users use

mobile devices to access the network. As the devices have lower signal power by nature to sustain longer battery life, APs are less likely to pick up data

sent from the devices comparing to which from laptops. The NWA5301-NJ comes equipped with well-placed high-gain antenna to maximize the RF

pattern for optimized performance communicating with mobile devices. With all the advanced RF design, the NWA5301-NJ can signicantly reduce

Devices (PD) like VoIP phones without electric outlets and power cables. The NWA5301-NJ fullls all kind of connectivity requirements to provide great

in-room services.

Comfortable and considerate network services

With experience and expertise in the hospitality industry for years, ZyXEL implemented several thoughtful designs in NWA5301-NJ. The LED of NWA5301-

NJ features a so-called “suppress mode” which stops blinking after system initialization is done; this gives the room guest a comfortable space with

peace-of-mind. Moreover, the AP status can be checked with this LED indicator with a simple click of a button. To prevent leaking of personal data, layer-2

isolation can be enabled in NWA5301-NJ so the users can only access shared services and peripherals such as hotel fax machines and are blocked from

reaching other guest devices in the hotel. All these superior designs of ZyXEL NWA5301-NJ help hotel businesses to provide integrated in-room services

with quick, best-in-class installation and to facilitate deployment and management.

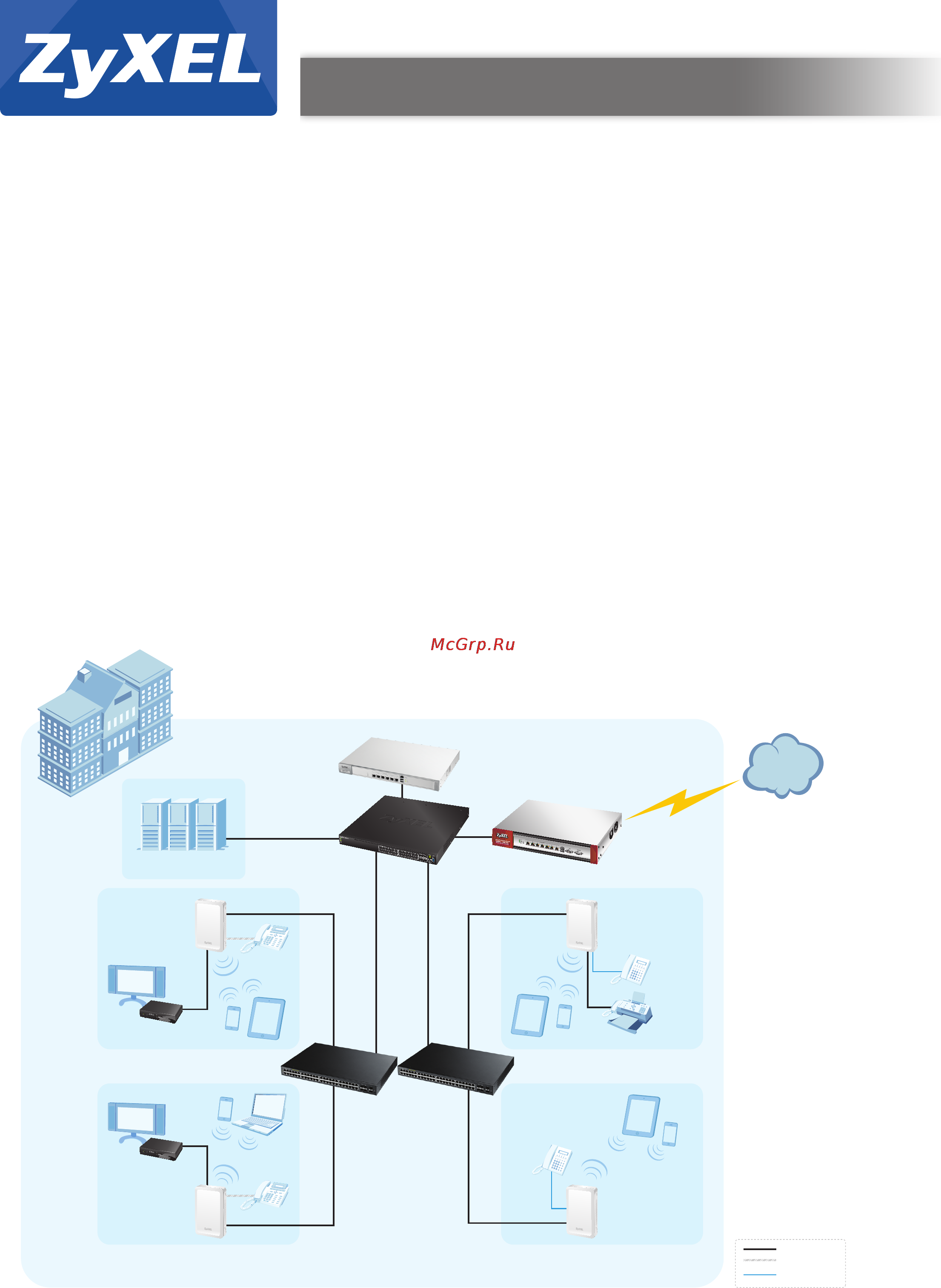

ApplicationDiagram

24-port GbE L2+ Switch

with 10GbE Uplink

Executive Room Conference Center

Executive Room

Wall-Plate Unified

Access Point

Wall-Plate Unified

Access Point

Digital

Phone

Fax

Digital

Phone

IP Phone

Set-top Box

Radius

Media

802.11 b/g/n

Wall-Plate Unified

Access Point

802.11 b/g/n

Wall-Plate Unified

Access Point
