Chapter 12 Remote Management
NWA1100-N User’s Guide
105
To change your NWA’s WWW settings, click REMOTE MGNT > WWW. The following screen shows.

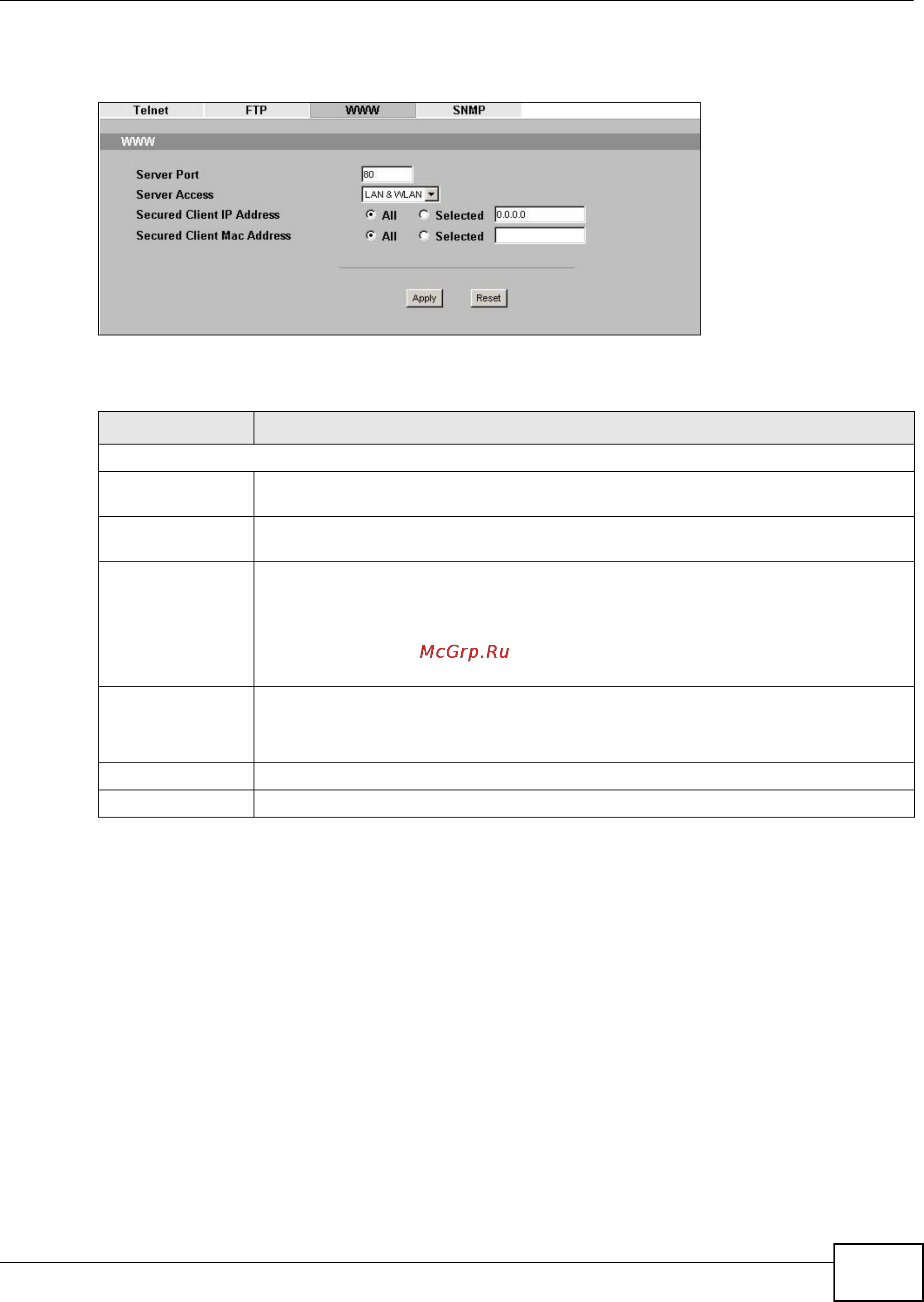

Figure 54 Remote Management: WWW
The following table describes the labels in this screen.
Table 34 Remote Management: WWW
LABEL DESCRIPTION
WWW
Server Port You may change the server port number for a service if needed, however you must use
the same port number in order to use that service for remote management.
Server Access Select the interface(s) through which a computer may access the NWA using this
service.
Secured Client IP
Address
A secured client is a “trusted” computer that is allowed to communicate with the NWA
using this service.
Select All to allow any computer to access the NWA using this service.
Choose Selected to just allow the computer with the IP address that you specify to
access the NWA using this service.
Secured Client
MAC Address
Select All to allow any computer to access the NWA using this service.
Choose Selected to just allow the computer with the MAC address that you specify to
access the NWA using this service.
Apply Click Apply to save your customized settings and exit this screen.
Reset Click Reset to begin configuring this screen afresh.
