NWA1100-N User’s Guide 20
CHAPTER 2
Introducing the Web Configurator
This chapter describes how to access the NWA’s web configurator and provides an overview of its
screens.
2.1 Accessing the Web Configurator
1 Make sure your hardware is properly connected and prepare your computer or computer network to
connect to the NWA (refer to the Quick Start Guide).
2 Launch your web browser.
3 Type "192.168.1.2" as the URL (default). The login screen appears.

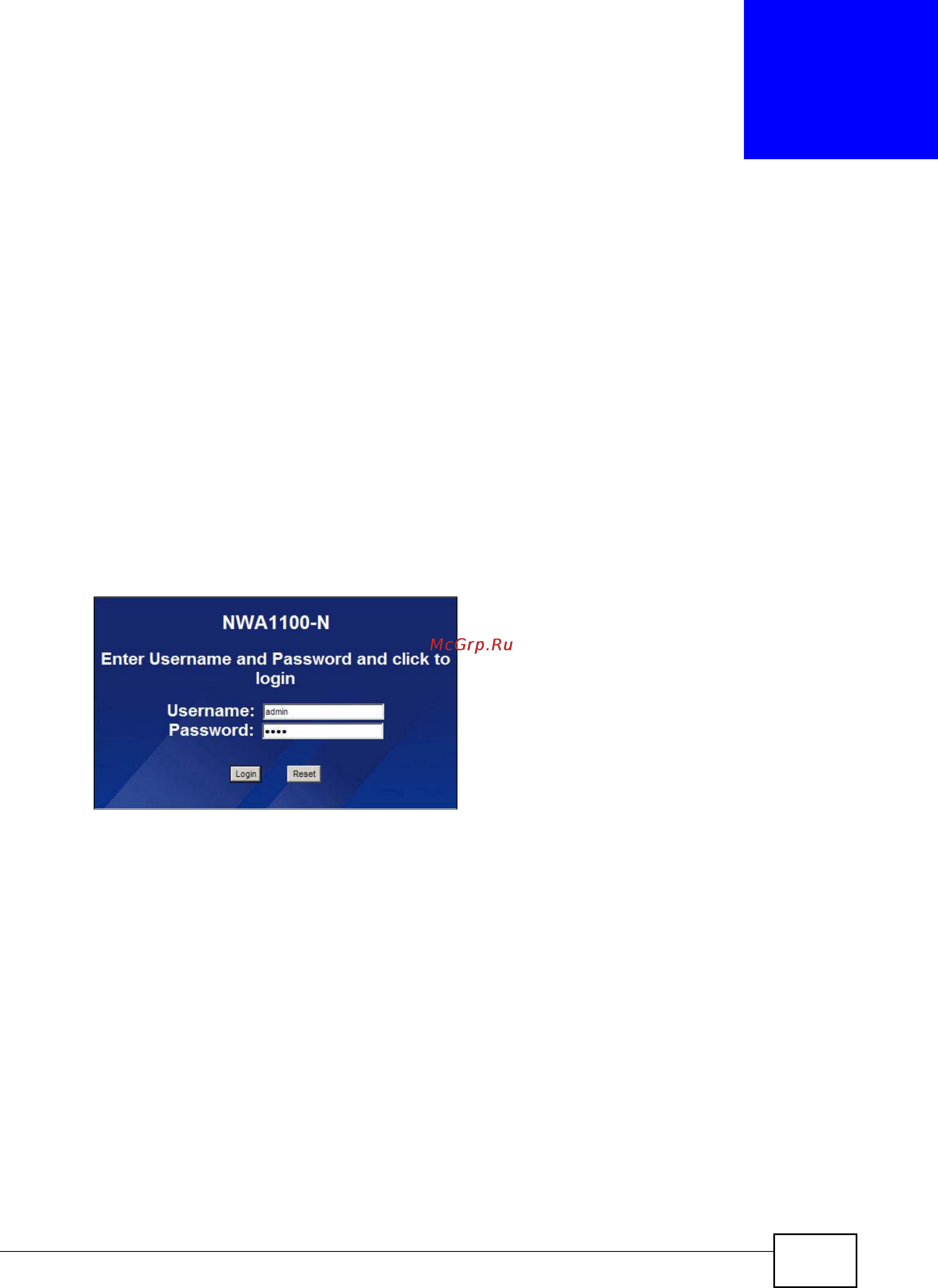

Figure 11 The Login Screen
4 Type “admin” as the (default) username and “1234” as the (default) password. Click Login.
You should now see the Status screen. See Chapter 2 on page 20 for details about the Status
screen.
Note: For security reasons, the NWA automatically logs you out if there is no activity for
longer than five minutes after you log in. If this happens, simply log back in again.
2.2 Resetting the NWA
If you forget your password or cannot access the web configurator, you will need to use the RESET
button at the rear panel of the NWA. This replaces the current configuration file with the factory-
